What are you working on currently?

mayo.mick

bamayang wrote: »

Really lovely work. What was the finish you applied? Great finish off the chisel.

Shellac sanding sealer, when dry rubbed down with 0000 wool. Then 3 coats of EEE paste wax and then a coat of shellac friction polish.

Alun

mayo.mick wrote: »

Shellac sanding sealer, when dry rubbed down with 0000 wool. Then 3 coats of EEE paste wax and then a coat of shellac friction polish.

Ah, that U Beaut stuff is great, I use the ultra shine and the shellawax a lot. Where did you get it from? I got mine from some friends who brought it back from Australia for me, but it's running a bit low.

basillarkin

https://imgur.com/VdDbNo1

mayo.mick

Turned a couple of Ash containers to hold my 2" sanding pads nice and tidy. Took the opportunity to try engraving some different fonts on the lids with the laser. The 120 lid was laqured, the 240 lid was just sanding sealer.

Alun

mayo.mick wrote: »

Turned a couple of Ash containers to hold my 2" sanding pads nice and tidy. Took the opportunity to try engraving some different fonts on the lids with the laser. The 120 lid was laqured, the 240 lid was just sanding sealer.

Cool! Never knew such things existed!

Do you engrave after finishing or before?

glynf

basillarkin wrote: »

https://imgur.com/VdDbNo1

Very nice, the floating shelves look great. what wood is that on the wall & drawer fronts-veneered ply?

basillarkin

glynf wrote: »

Very nice, the floating shelves look great. what wood is that on the wall & drawer fronts-veneered ply?

walnut veneered mdf,

mayo.mick

Alun wrote: »

Cool! Never knew such things existed!

Do you engrave after finishing or before?

I did the 120 lid after a couple of coats of spray clear gloss laqure. The 240 lid I did after sanding sealer. Just to see if there's any difference. The only other difference is the 120 was in regular text and the 240 is in bold. Both work equally well from what I can see.

CelticRambler

Several years ago, working on the site of a future commercial archive I was horrified to see the rack-building subcontractors throwing wooden packing pieces into the skip, so I started collecting it and bringing it home ... by the trailer-load (this is about a quarter of it):



The 2.4m "2x4"s (apologies for the mix of metric and imperial) have been mostly used for framing and structural work (including this greenhouse last year) but I've long had the intention of doing something more glamourous with the shorter blocks. Their time came this week - two "proof of concept" planters, awaiting weatherproofing:



The concept being proven was that they'd be exactly the right size to hold those light wooden fruit/veg boxes, so that I can prepare seasonal flower displays "off site" and swap them quickly throughout the year.

Sparks

More practice. Turned out nice, got the walls fairly thin. 3" sycamore blank to jellybean dish for Calum. Poppyseed oil and blonde shellac finish.

iamtony

mayo.mick wrote: »

I videoed the second laminated/segmented bowl that I turned during the week. First time recording a work in progress! I'm used to either videoing or turning, but not both together, it was a bit of a challenge to both direct & act :pac:
Flippin editing and processing took nearly as long as it took to turn and finish the bowl!!

Anyway, C&C's welcome.....

Very cool! It's hypnotic to watch that being done. Turned out beautiful. How did you attach the bowl to the lathe when you flipped the piece around? Excuse my wood turning ignorance.

magicbastarder

you can see 11:00 in that he's using a segmented chuck with jaws - those jaws wind in or out (in to grab by compression, out to grab by expansion).
in his case, they would have wound out to grab the inside of the hollow in the bottom of the bowl.

mayo.mick

iamtony wrote: »

Very cool! It's hypnotic to watch that being done. Turned out beautiful. How did you attach the bowl to the lathe when you flipped the piece around? Excuse my wood turning ignorance.

As Magic has said, when I have the piece trued up, I turn a 52mm recess on what will be the underside, to fit on my expansion jaws. You could use a tennon, but you'd then have to finish that off afterwards. Same with a glue chuck. I find using a recess cuts down on the work needed, and gives the added advantage that if ever I need to remount on the lathe, it makes it very simple! Plus, I can embed my name disc in the recess:)

iamtony

Ah very good thanks. I was baffled. Makes sense now

magicbastarder

might be a little clearer in this image:

iamtony

magicbastarder wrote: »

might be a little clearer in this image:

Yes I get it thanks. By the way I really want to buy a lathe now after watching that:D it's on the list.

mayo.mick

Recess is 52mm x 6mm deep.



Apologies for the filthy pic :pac: Should have wiped down before taking photo!

pnecilcaser

Yay. Successfully used up ALL the pallet wood in my shed by building a few lock down planters

full blog post here

Chucking together a Dutch Tool Chest (to leave at the farmhouse) using some old pine shelving boards. Dovetailed the sides and base board, but didn't cut a rebate for the centre shelf as I want to be able to move it up and down to settle on final dimensions. Once done, I'll make it all nice. I'll continue tomorrow evening if the workday doesn't run too late.

mobfromcork

Tipping around out the back over the last week or two and had to fence off between the end of the garden and the field. A bit (a lot) more agricultural than a lot of the stuff on the last few pages but I made the gates and arbour from a mix of larch and Spruce. Morticed and tenon joints for the gates but found it hard to do with the larch. It's very flaky to work with so the joints aren't very tight but they're glued and I put a few screw through the tenons as well. Waiting on some hardware when the shops open again to finish - closing springs, throw-over latch. Going to grow some climbing stuff up over the top.

Bench was made from an upcycled bed-frame - shortened the rails and cut out new tenons, resawed some other PAO 9x2 i had leftover from another project fro the bench part. Kids painted it up yesterday.
The chairs were belonging to my partner's grandmother -sanded down (about 7 or 8 different colours), small bit of re-gluing on some of the legs and repainted.

Guru Maith Agut

mayo.mick wrote: »

Recess is 52mm x 6mm deep.



Apologies for the filthy pic :pac: Should have wiped down before taking photo!

I've been looking for a supplier of company logo (coin like) inserts like that Mick. Can you tell me where you got them please?

Thanks

mayo.mick

Guru Maith Agut wrote: »

I've been looking for a supplier of company logo (coin like) inserts like that Mick. Can you tell me where you got them please?

Thanks

I make them myself with a neje 1500 laser engraver. I get the 30mm discs on amazon. I got some 20mm but they are a little small.

Sparks

A few woodturners apparently use hard or soft enamel badges made custom without the pins or whatever at the back. https://www.madebycooper.co.uk/products/badges/premium-hard-enamel-badges was the reference I came across but there are others - etsy should have a bunch.

Sparks

Got myself a cheap photobox off aliexpress, so now I have a nice photo of that last small bowl...





Almost looks like I know what I'm doing

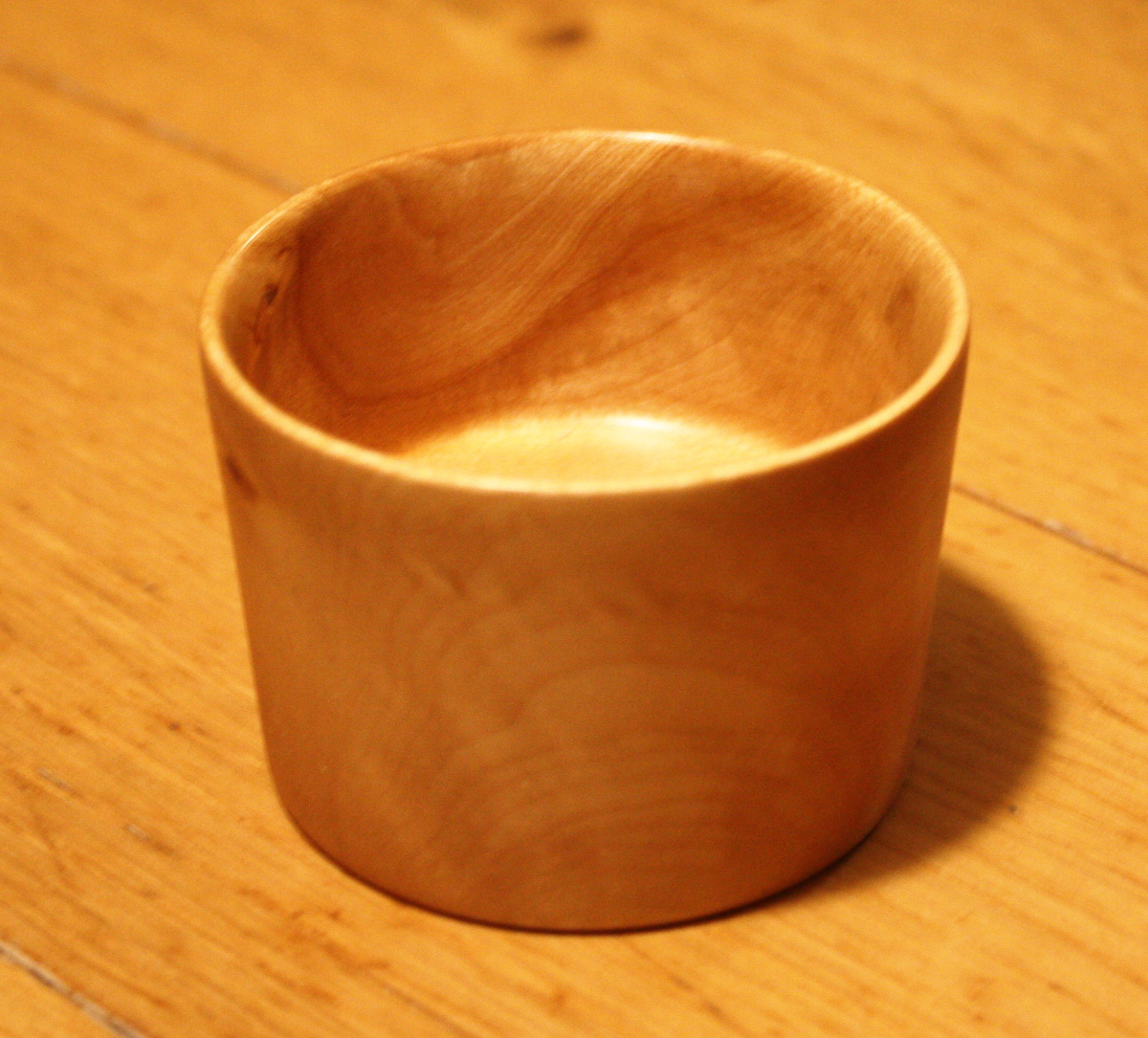

Made another small 3" bowl just to be sure the thin walls weren't a total fluke.





Turns out this is a lot easier when you have better lighting to see inside the bowl when you're cutting it out...

bamayang

Anyone ever look at alaskan saw milling as an option for reasonably cheap source of timber/hardwood? I have access to a few small trees that are going to either rot or eventually be firewood if i dont get to them.

Wondering would it be worthwhile to get a chainsaw and put together a basic frame for doing the milling. The frame with the ladder seems very straightforwrd. Met a lad a few months back who does it a lot, and he was at pains to explain you wont make money from it. He was saying, lads see me selling 6 ft slabs for €100 and think im raking it in with 6 slabs in a tree. But theres the chain, hitting nails and trying to keep it sharp and the amount of fuel that goes into it. Which is all very reasonable.

But to do it for yourself, if you can make the frame, and access the timber for almost nothing. It would just be the saw, the consumables and the back ache! Wonder would it be worthwhile??? I reckon €300 and you'd be set up to go, you wouldnt buy a huge amount of hardwood timber for €300...

magicbastarder

I assume that's hard going, as you'd be permanently sawing into endgrain?

CelticRambler

Every so often I look at the YouTube videos and think about how great it'd be ... and then I look at the stack of oak trunks outside waiting to be cut up and realise that it'd be exponentially more trouble and effort than cutting up a single tree for firewood.

Mind you, I do have the luxury of having a mobile sawmill somewhere in the vicinity that charges a very reasonable fee. One of these days, I might get around to booking them and get the whole lot cut up in one long session.

chillyspoon

CelticRambler wrote: »

Mind you, I do have the luxury of having a mobile sawmill somewhere in the vicinity that charges a very reasonable fee. One of these days, I might get around to booking them and get the whole lot cut up in one long session.

I've done this - it's definitely worth it for the timber and a fun process to be involved in too. I highly recommend doing this if you have the opportunity.

Update: I remembered I recorded a couple of snippets of video at the time, so I've popped them onto YouTube.

G-Man

glynf wrote: »

Few bits I got done in the last few weeks:

Some shelves for the kids room, most of a sheet of ply used, rabbets, biscuits & glue for the joints:

..
..
I made it as large as possible for the space, needless to say It covered both sockets in the area..

What ply is it and what way is the front edging done.. Cut and route or sand or what.

Would like to do, but would surely end up with it chipped. sd

bamayang

Ya i'd say there would be nothing simple about it. You'd have to put a hard days work in to get the timber out, not to mention the year or two awaiting drying time.

But for not a huge outlay on equipment (the chainsaw could still be used as a reg chainsaw the rest of the year), you could have access to a great amount of timber. And also the satisfaction-of-hardship factor...
