Aritech Alarm Internet Dialler

ozmo

https://www.boards.ie/discussion/comment/121004564#Comment_121004564

Hi - The HKC's use only 3 wires - +5V, GND - the A and B (receive/transmit) are actually the same - both receive and transmit are done on the one wire.

So you only need connect up one to the circuit - see image

https://github.com/OzmoOzmo/CastleHKCArduinoESP32/raw/main/Docs/HKCPinOut.JPG?raw=true

(The Aritechs use and need all 4 wires)

Kenny Powers

In the code for the esp32 it refers to rx16 and tx27 do I just change these to 6 & 7 for the D1 32 board?

On the proto shield layout pins 4&3 are connected to resistors but don't appear to be connected to anything else, can we just leave these out?

ozmo

https://www.boards.ie/discussion/comment/121573965#Comment_121573965

Oh - Good question - those resistors were for optional feedback leds that show good communication with the panel... leave out or fit leds as in the image below if you like lots of flashing lights (I do) - preferably different colours - Ill update the docs online.

16 and 27 I think are correct though - the Pins on the ESP D1 32 dont match the Arduino UNO layout and the numbers printed on the board- see eg.

https://bpb-ap-se2.wpmucdn.com/blogs.auckland.ac.nz/dist/9/698/files/2021/08/2_Pinout_D1_R32.png

also - this is the display module you can use (about 3 euros) - again optional - it displays some feedback about wifi status. It clips onto pins gnd/18/19/23 partially covering the first transistor.

https://www.aliexpress.com/item/1005005281308478.html

Kenny Powers

Thanks a mill for that, I think I need glasses I couldn't see 16 & 27 just 6 & 7 but as per your attachment sure enough they are 16&27

MauriceVeenman

https://www.boards.ie/discussion/comment/119416942#Comment_119416942

Hello, was this ever resolved? I am having the same error messages. Kind regards from the Netherlands, Maurice

ozmo

Those changes the compiler output posted above look fine and easy to change - they seem to have simplified the spelling on some constants the code needs - i’ll update the git code tomorrow.

Dunno why they keep changing the libraries. Small things like renaming stuff of course is going to break existing code.

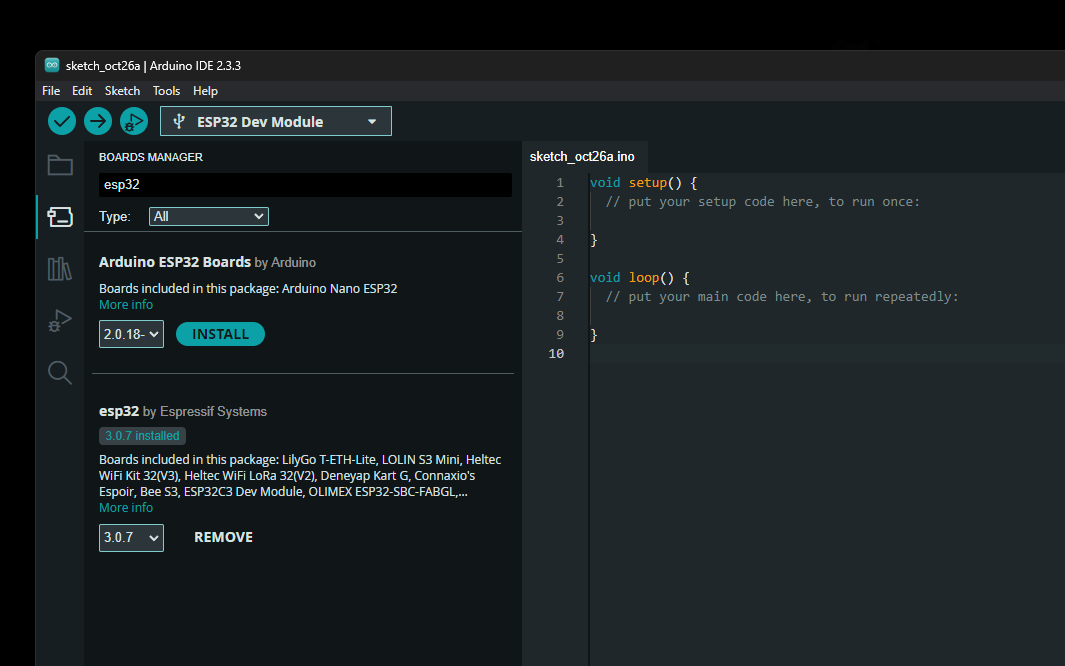

if you want you can change the compiler to compile with an earlier Arduino library also. It should compile with no errors.

Also look into “Retrobrighting” for making old yellowed plastics white again. Basically use hair products (peroxide) and uv light (or sunlight). The retro gaming community use them all the time for old consoles. Even leaving out for several in sunlight can help…

MauriceVeenman

Ok, thank you! I'll see if I get it running with older libraries, although I have no idea yet how to do that :). I am a newby with these things, but I think it is a cool project, and it would be awesome if I get it up and running. I'll report back if I make some progress.

MauriceVeenman

Ok, I can compile without errors now. I used the suggested variables. I can also flash the code to the Wemos D1 R32 board (first I could not, turned out to be an issue with the micro usb cable). I uncommented the DEBUG_LOG line in Config.h (because nothing was happening in the Serial Monitor.

I now constantly get the following lines:

21:26:28.044 -> End EtherInit
21:26:28.520 -> Connecting..Connecting..Connecting..Connecting..Connecting..Connecting..Connecting..Connecting..Connecting..Connecting..Wifi Down - Start Wifi
21:26:34.114 -> End EtherInit
21:26:34.614 -> Connecting..Connecting..Connecting..Connecting..Connecting..Connecting..Connecting..Connecting..Connecting..Connecting..Wifi Down - Start Wifi
21:26:40.177 -> End EtherInit
21:26:40.675 -> Connecting..Connecting..Connecting..Connecting..Connecting..Connecting..Connecting..Connecting..Connecting..Connecting..Wifi Down - Start Wifi
21:26:46.198 -> End EtherInit

So I think it cannot find or connect to my Wifi network. I've put the correct credentials in the config.h file. So, some progress but still a long way to go :)

MauriceVeenman

Ok. Can connect to a different Wifi. The webserver is also running :). But it is not hooked up to the Alarm System yet. I still have an issue with my oLED screen: it remains black.

ozmo

Did you make up the circuit board? Post a clear zoomed in photo of both sides and we can check the wiring…

MauriceVeenman

Yes, I soldered the circuit. But should the oLED not also work without the extra circuit, if I just hook up GND, VCC, SCK and SDA to 4 pins on the WEMOS?

Also, the Prototype Shield has 8 pins on the right with the plastic casing, whereas the underlying WEMOS has 10 pins: the 2 extra being the SCL and SDA. So from your picture on Git I can not clearly see where the oLED is connected to.

I probably misunderstand something :)

Directly to the WEMOS:

The soldered circuit:

ozmo

Thanks for the feedback - Il update docs with that

I've update the code to support the latest ESP32 SDK - it should compile on latest again (v2.0.14) without issue.

Your board looks good! - This is my board, it seems very close. I know I have 1 extra resistor - ignore that - It was for testing purposes.

- the Oled is connected to GND,VCC(+3v), SDA(18) and SCL(19) - see below - as the shield didn't have sockets for the usual pins.

I removed the black header on bottom right of the shield - I wanted to solder it all to make good contact as that is an important connection.

The large capacitor is there to make flashing more reliable - try flashing with the shield on if you have issues uploading code to the ESP32.

Oh - and the top board uses the 14v from the panel to power the bottom (esp32) board via that jack at the top - so this is all you need when done.

MauriceVeenman

Ah, yes. oLED is working now. Tomorrow I'll hook the 4 wires up to the alarm system. I have a CS350 with 3 keypads. The ESP32 will be the 4th pad. But before I test it on the actual system I'll test it on a second CS350 with 1 keypad that I found 2 weeks ago on the Dutch equivalent of E-bay :)

Thank you for your help so far! I would have been stuck for a long period without it. I'll post my new findings soon.

MauriceVeenman

Ok, seems to work. I hooked the ESP32 up to the spare alarm system. Installed the '2nd' key pad, and voila.

Still a few issues:

1) When trying to press the web key pad I initially got 'connection closed' messages. I then remembered that I still had a lot of debugging messages turned on. I commented this out, flashed again, and now the connection lost messages are gone. Could it be that the respons is too slow, when debugging was still turned on?

2) I cannot connect to the smtp server for sending mails. Not with my personal provider, also not when I made a new account at gmail. Could it be related to this: https://support.google.com/accounts/answer/6010255?hl=en

3) I could not engage the alarm. It complains about 'open zones'. Probably because I have no sensors connected to the spare alarm and I have also not configured it after the factory reset. I expect that I will not have these issues with my operational alarm system.

4) I constantly lose the Wifi connection. Don't know why that is. When it happens I obviously can not access the webserver.

That's it for now. I'll play a bit more with it before I transfer it to the actual alarm system.

ozmo

Thanks for info- so google starting to block logging in using username and password. Will have look another solution. Meanwhile I have telegram app notifications working in the hkc version…could port and use that.

Yeah- open zones- you need close the zone circuits- usually with resistors that are supplied with the panel for that purpose. Or otherwise inhibit/disable the zones.

for wifi- make sure to use 2.4ghz rather than 5ghz - more reliable.

MauriceVeenman

Last week I was away. I started experimenting with the setup today. I was able to disable the open zones, so that I am actually able to arm/disarm the alarm. It works. With the ESP32 I am able to operate the alarm.

But the connection is not stable. After a while, it can vary from 10 min to 30 minutes, I am no longer able to navigate to the webserver. When I hook up the laptop to see the log messages, I see no Wifi related issues. Only messages related to the delay:

The connection between the ESP and alarm is apparently ok, since the alarm is not tripping. It stays in the current armed or disarmed state. So, there only seems to be an issue with the webserver and/or wifi. When I ping the ESP, I get no response. I tried both http and https versions. In both cases I eventually lose the connection.

You mentioned to make sure to use 2.4 GHz. When I go to my router, I see that both 2.4 and 5 are enabled. Do I just disable the 5 in the router to make sure I have a 2.4Ghz connection? Or do I have to do that differently? Thanks again.

MauriceVeenman

Ok, I just turned off the 5GHz option in the router. The ESP came back online shortly after without any intervention from me. I'll let it sit like this for a while, and see if it makes a difference. More later.

MauriceVeenman

Well, it didn't improve the situation much. I then switched to a different wifi network, and now the connection seems stable. The problematic one is an old router, acting as an access point. So, don’t know what the issue is, but this problem seems solved with the other wifi network.

Now I want to include the web interface panel in to Home Assistant. Since I made Home Assistant accessible from outside my local network using duckdns, I can only use https sites. When I use https for the ESP32, things get slow, and I get all sorts of certificate messages. There seems to be workaround with Nginx Proxy Manager. I will first sort this out, and if that works, transfer the ESP to the actual alarm system. Keep you posted.



MauriceVeenman

Got it in Home Assistant. It's also accessible when not on the local network via a VPN tunnel. Now I want to 3D print a casing for the ESP32, with access to the oLED screen and reset button. After that hook it to the final alarm system. Almost there :)

MauriceVeenman

Printed a casing. Coming week I'll finalize the project.

ozmo

Cool - nice one - I like the integration into Home Assistant...!

The UI is all standard HTML in the file "WebSocket.cpp" - so if you want to dark mode it to match .. you could of course modify it something like eg.

Change line 78 and 79 from

"</head><body>"

"<div style='border: 5px ...

to: (new bits added are in bold)

"</head><body style='background-color:#1c1c1c'>"

"<div style='background-color:lightgreen;border: 5px ...

MauriceVeenman

Thanks! I'll try that.

MauriceVeenman

Yeah, it's working on the actual alarm system. It was so crowded with cables inside the main alarm housing cabinet, and the terminal screws where not working along, that I ended up attaching the ESP to another key pad. I expected the alarm to be tripping, but entering the engineering mode was enough to prevent that. I also implemented your colorscheme suggestion :).

Many thanks for your help. Without it I would have never gotten this to work. You made something nice here.

I'll let you know how it went after a couple of weeks of operation.

MauriceVeenman

It's a month later, and I didn't have a single issue :). Really happy with this upgrade.

ozmo

https://www.boards.ie/discussion/comment/121934861#Comment_121934861

Thanks for the feedback :)

Well done yourself on building and integrating it so well!
