quietsailor · 10-04-2012 04:14PM #1

Hey Folks,

long time lurker I think this is the first thread I've created here and probably one of my few posts here so thanks in advance for helping someone who hasn't contributed much to the forum.

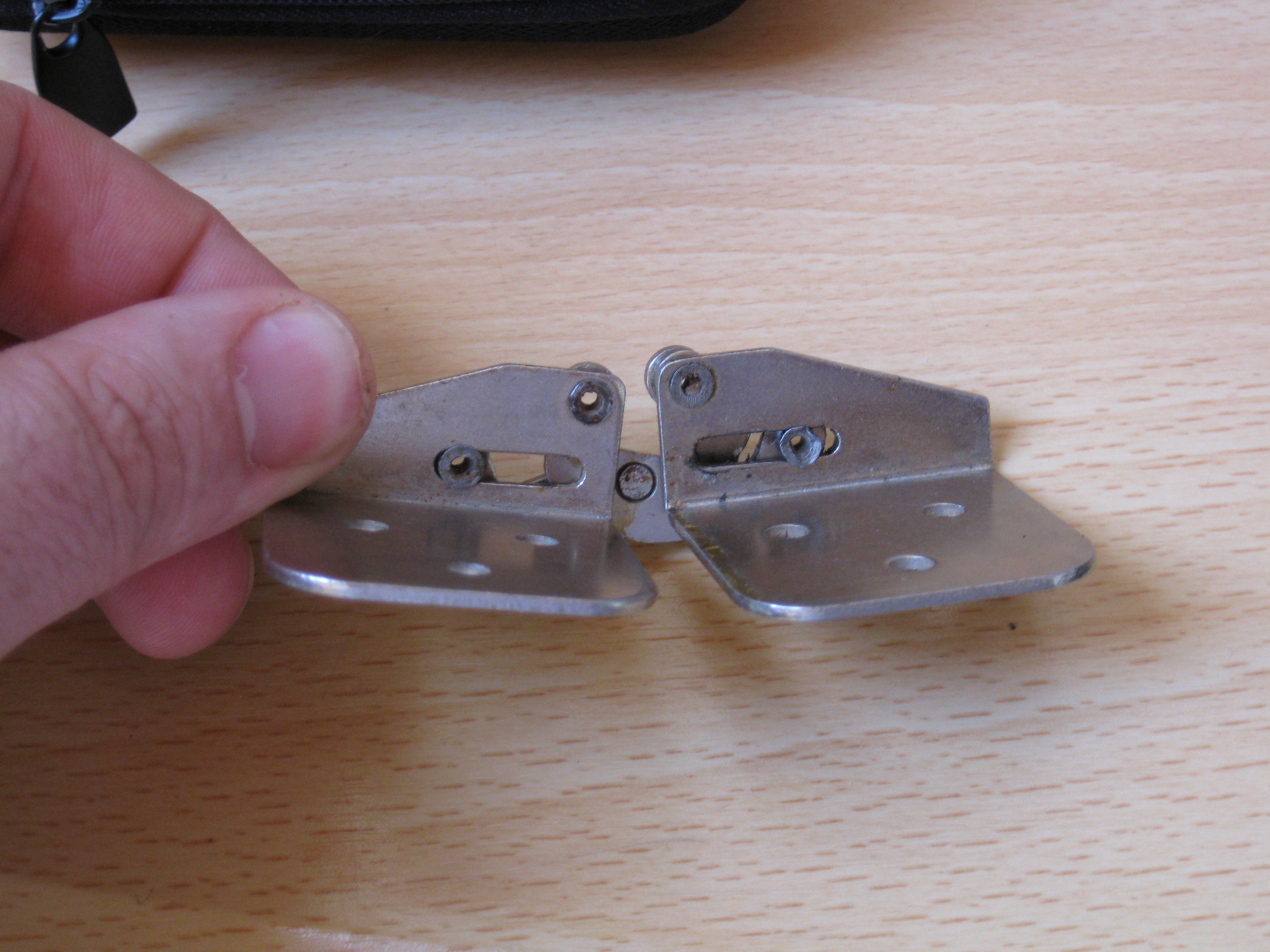

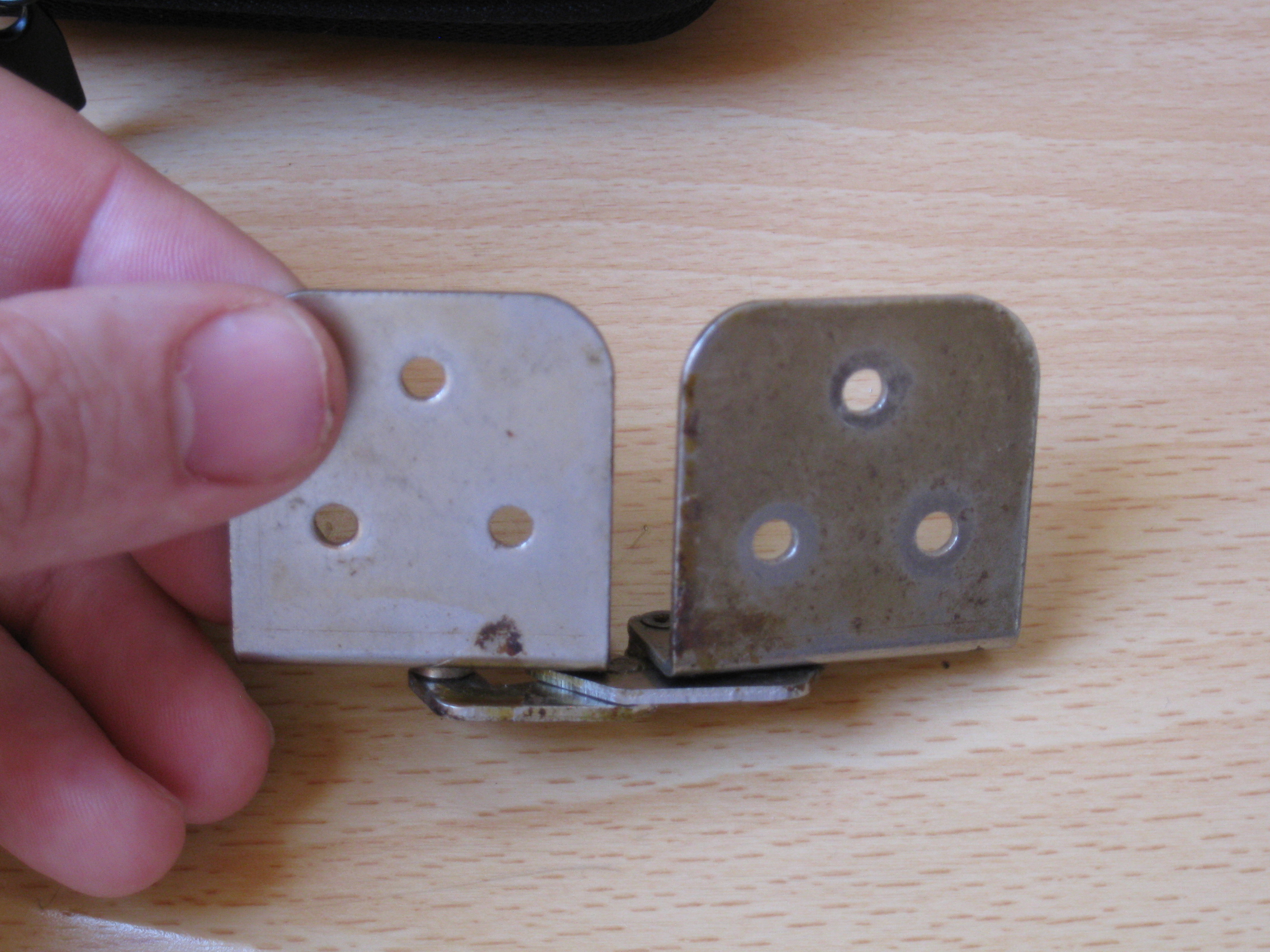

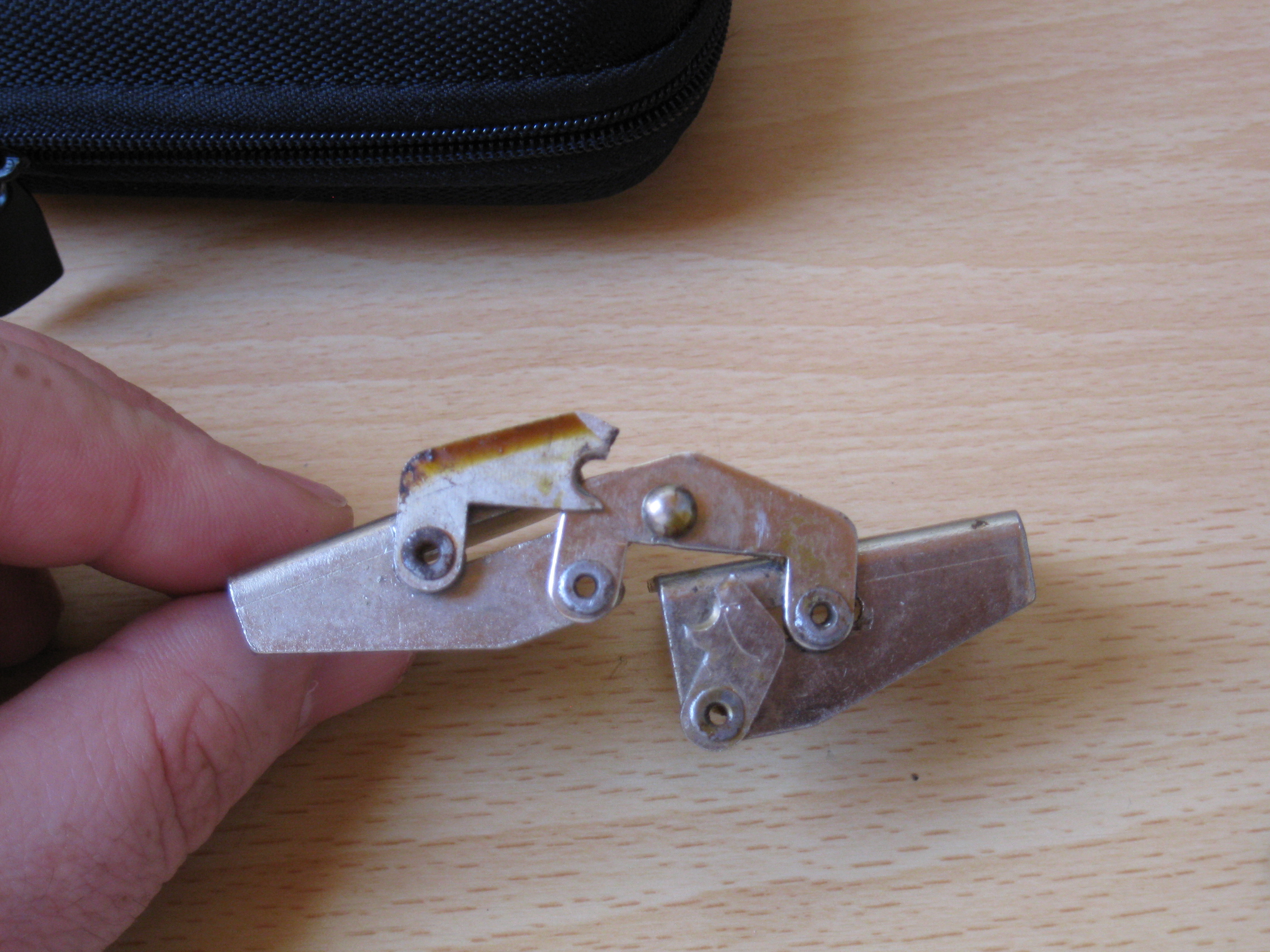

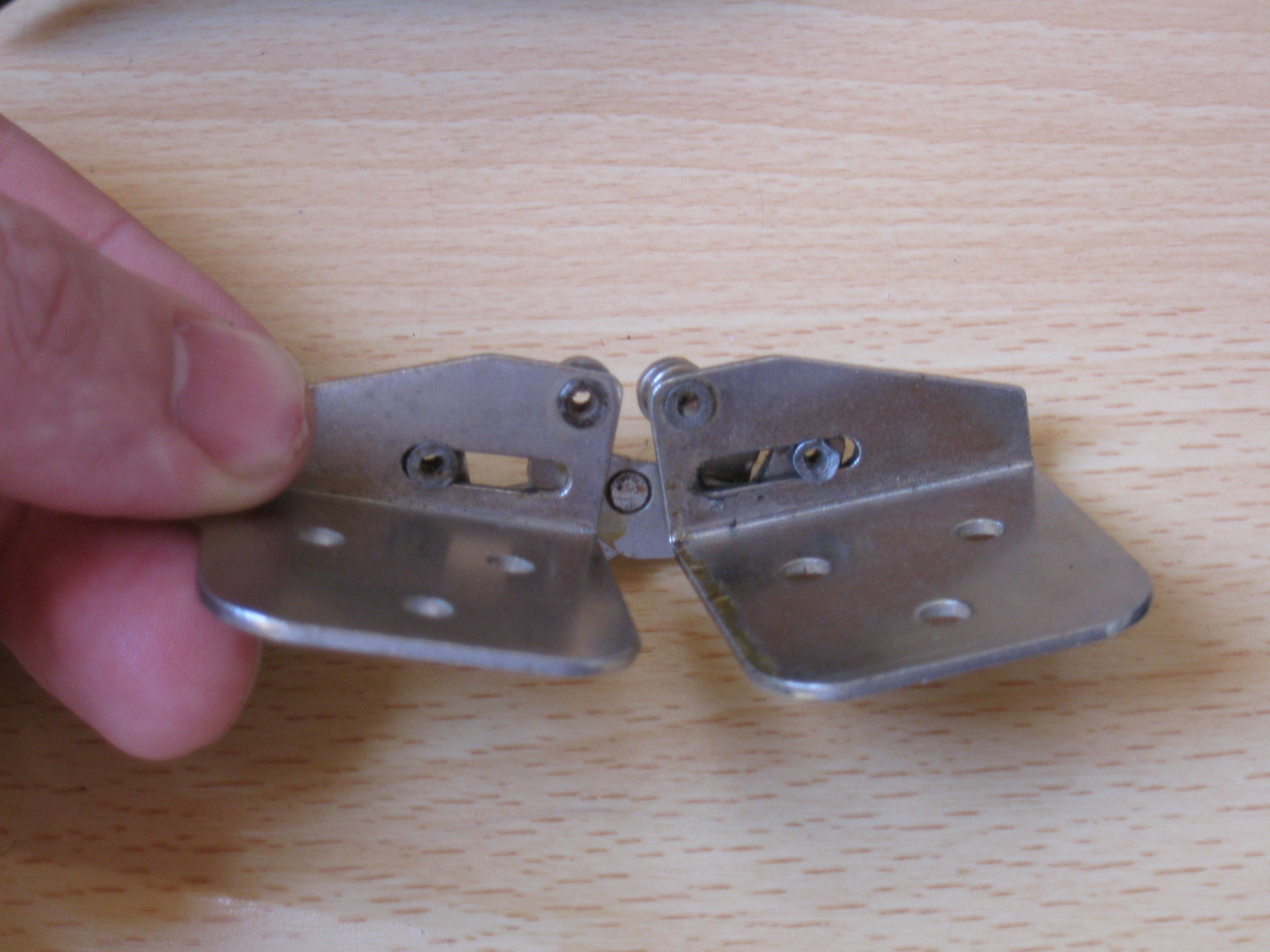

The hinges below came off a table - one of the ones that you pull apart the regular table top and extra leafs pull up&out to extend the table.

The hinge can probably be fixed but its become strained and I would like to replace it. I've googled hinges, linkage hinges, table hinges and a few other combinations but I cannot get any hinge that looks like this one.

So after all that typing the question is simple - has anyone of you good folk came across a place that sells this type of hinge?





earpiece · 10-04-2012 10:35PM

That is called a 'folding leaf hinge'

http://www.hafele.co.uk/Hafele35a1/Templates/Hafele/Products.asp?param=4964&ig_id=10368&title=Folding+table+hinge

above is available from Hafele Ireland, www.hafele.ie or ph. 01-287 3488

quietsailor · 14-04-2012 07:56PM

Thanks earpiece,

I'll get onto the haefele supplier for one of them.

quietsailor · 16-04-2012 05:56PM

I tracked down a hafele supplie rin Cork - Handles and Hinges on the Tramore road - and ordered the hinges. €16.50 for the pair so I'm happy now.

All that's left is to fit them :eek:
