Recommendations: Simple 48V LiFePO4 Charger for 7kWh Night Rate Top-Up (Scheduleable)

  • 13-12-2025 12:13PM
    #1
    big_red
    Registered Users, Registered Users 2 Posts: 26 ✭


    My inverter setup is maxed so I need a basic 48V mains charger to add ~7kWh to my LiFePO4 battery bank during the 3-hour EV night window. Any recommendations please for something simple with timer scheduling, adjustable to 56.8V max, EU supplier preferred (Ireland/UK plug).


    Am I correct to think I just connect directly to the battery busbar? Thanks!



Comments

  • #2
    mjatkey
    Registered Users, Registered Users 2, Paid Member Posts: 456 ✭✭mjatkey


    https://www.boards.ie/discussion/2058429782/recommendations-simple-48v-lifepo4-charger-for-7kwh-night-rate-top-up-scheduleable

    Hi, just realised my original reply disappeared? Anyway there a few rectifiers available that are normally used in the telecoms industry, Huawei, Eltek and Emerson would be the most popular.

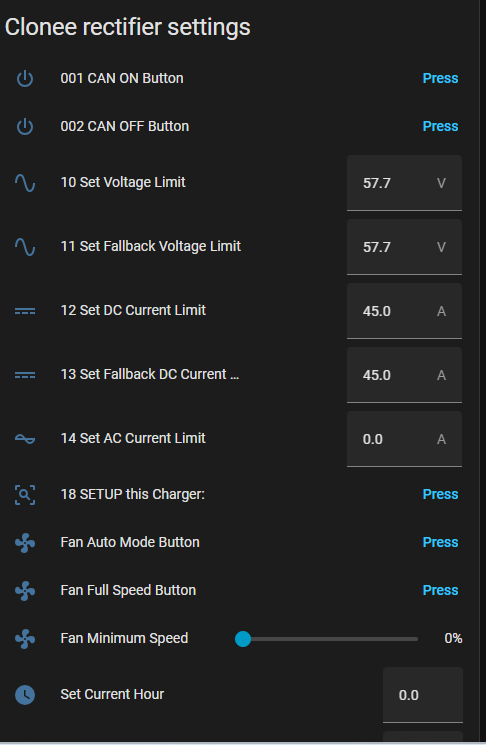

    You can pick them up for £30-£100 and easily integrate them into Home Assistant that makes them easy to control, voltage, current etc.

    I use a Huawei R4850, works well.

    You can buy off the shelf pre-set ones but will pay a bit more, or you can buy a charger from the likes of Fogstar for £150 ish.


    🌞 6.96kWp PV System. West Dublin🌞



  • #3
    big_red
    Registered Users, Registered Users 2 Posts: 26 ✭big_red


    Appreciated thanks.. I’ll look into those options
