Hot water switch is stuck

masterboy123 · 25-10-2024 03:34PM #1

Hi,

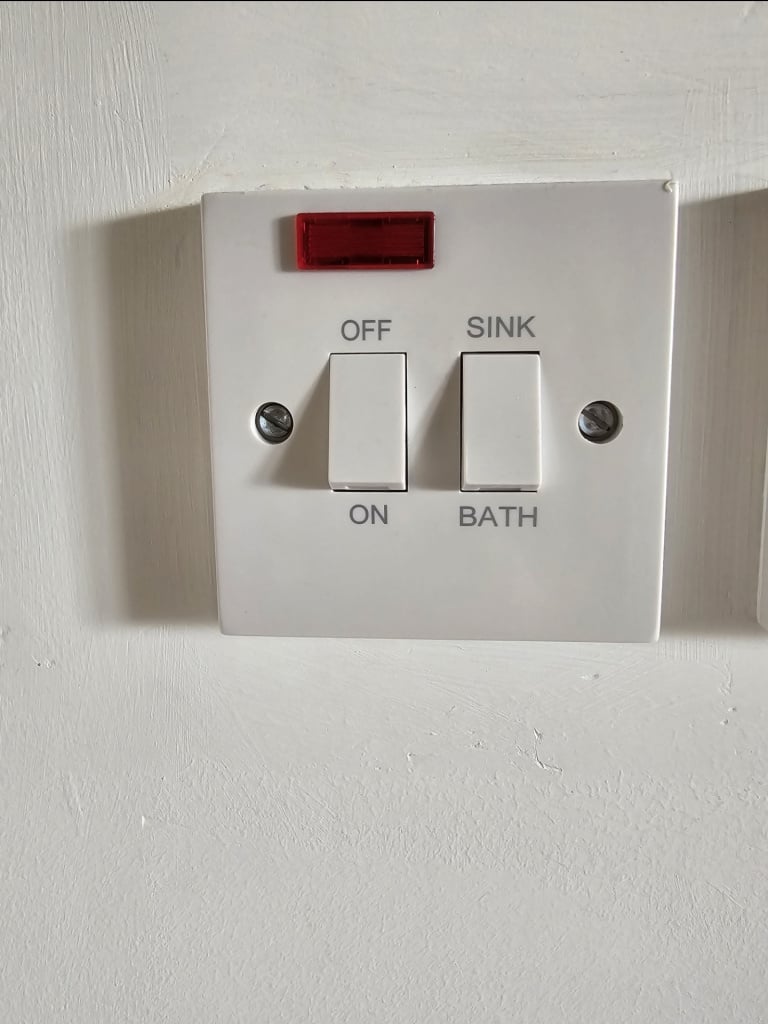

The hot water switch is stuck in the "Off" position. Does that mean I need a new switch? I've attached a picture.

I've changed basic switches myself. Is this something I could get from Screwfix and change myself?

The Continental Op · 25-10-2024 07:19PM

Yes you need a new switch. It is a DIY job if you are a competent DIYer. Chances are you won't get a switch that is identical and you will have to work out the connections for yourself.

This might help

https://funnyhacklife.blogspot.com/2020/10/bath-sink-immersion-switch-wiring.html

Obviously switch the mains off before starting and double check the power is off to the switch because you can't check by switching it on and seeing the red neon.

meercat · 25-10-2024 08:12PM

this brand of switch is known to burn out

The replacement switch may not require a link wire that is fitted In this switch

Take a photo of the back of the switch with the wires attached before you disconnect it

masterboy123 · 26-10-2024 10:11AM

Thanks all.

The switch is working again normally with no resistance. Not sure what happened yesterday.

Deregos. · 26-10-2024 10:19AM

https://www.boards.ie/discussion/comment/122764903#Comment_122764903

Be thankful it wasn't stuck in the on position. It probably is on it's way out so I'd get it replaced for a new one anyway.

masterboy123 · 26-10-2024 01:36PM

I am unable to find a dual immersion switch at Screwfix.

Are there any alternatives that I could look at with the same plate size?

Thanks

greasepalm · 26-10-2024 01:50PM

Lenahans , Chadwicks , Woodies and electrical wholesalers 20A via a Google search.

The Continental Op · 26-10-2024 02:08PM

https://www.boards.ie/discussion/comment/122765430#Comment_122765430

https://www.woodies.ie/immersion-heater-switch-1166607 Might be the exact same as yours but obviously a decent brand name might last longer.

masterboy123 · 26-10-2024 02:15PM

https://www.boards.ie/discussion/comment/122765468#Comment_122765468

Thanks.

I am hoping to get from screwfix as that's the nearest store and will have to travel far off. Woodies would be second option but I want to get a better quality and brand. These switch gets pretty warm after 30 minutes of usage.

Also, considering to get wifi controlled switch such as:

Smart Immersion Heater Timer Switch, 40A 8000W WiFi Water Heater Switch, Smart Wall Touch Boiler Switch with Timer, Smart Life APP Remote Control, Works with Amazon Alexa & Google Assistant https://amzn.eu/d/e7JQNv3

The Continental Op · 26-10-2024 05:16PM

https://www.boards.ie/discussion/comment/122765536#Comment_122765536

The Wifi device is only an on/off switch so you can't use it as a direct replacement for the original sink/bath switch. Well you can but you will have to have it on only bath or only sink. If you wire it as an additional switch before the sink bath switch and leave the sink/bath switched on then you can control what ever you have set (sink or bath) on the original switch from your phone.

afaik screwfix don't do a bath/sink switch, its not in their catalog and they didn't have one when I needed one a while back.

masterboy123 · 26-10-2024 06:57PM

https://www.boards.ie/discussion/comment/122766124#Comment_122766124

That's most helpful. Thanks
