Power socket for rear of tractor.

Reggie.

Hi all.

Looking to run power from battery to a socket to rear of the tractor to run the air seeder. Currently using the 12v inside the cab but it heats up alot and don't want to test faith more than I should.

Gonna bring a 3 core back but not sure what suitable socket to use. I know some guys use a 16 amp blue connection as it's waterproof and dustproof but hope someone might have a better suggestion. Maybe something off a truck or whatever

_Brian

https://www.boards.ie/discussion/2058428665/power-socket-for-rear-of-tractor

have seen lads use a trailer light socket. Just wire up as many pins as you need.

DBK1

Would you not use the standard 3 pin cobo socket that’s fitted externally on most tractors?

Reggie.

https://www.boards.ie/discussion/comment/124001179#Comment_124001179

Thought that but not too durable

Reggie.

Could but hoping for something more robust

_Brian

https://www.boards.ie/discussion/comment/124001203#Comment_124001203

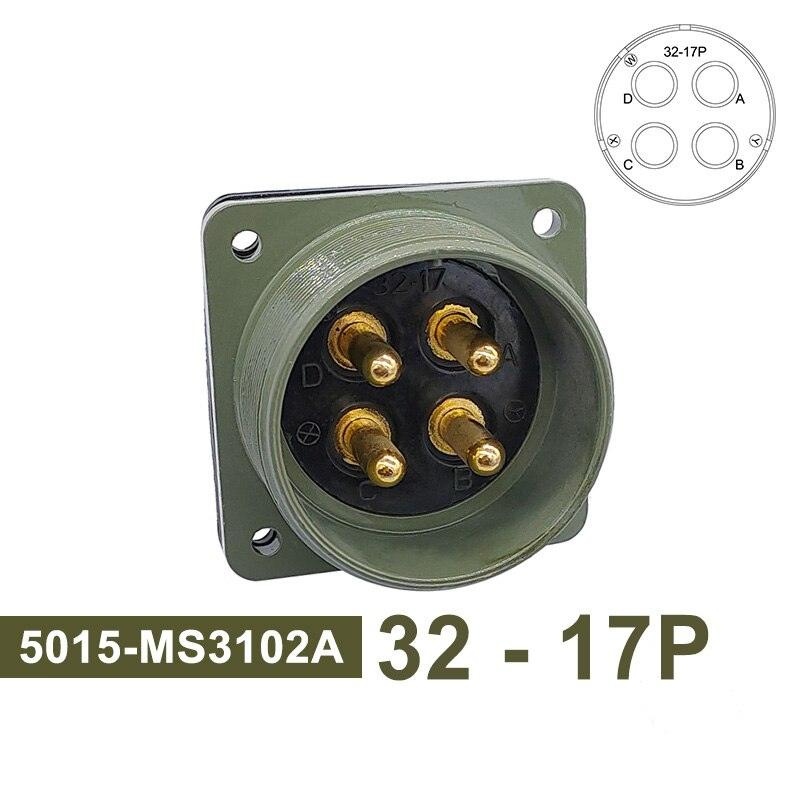

If you want something really durable look up “millatry” style connectors. Metal body, screw connect, water proof.
most have rubber dust covers when not in use

https://www.electric-b2c.com/products/mil-c-5015-mil-std-military-specification-connector-4-pin-32-17-circular-co

Reggie.

https://www.boards.ie/discussion/comment/124001614#Comment_124001614

Thats the type of stuff. Once it's not military grade. Know all about that

_Brian

https://www.boards.ie/discussion/comment/124001786#Comment_124001786

Half turn ones are probably more suitable than fully threaded.

bt12

u can kit power kit from spares from battery to rear of tractor think it’s 5m long and fused as well and use Anderson plugs
