Crossed spark plug thread

  • 01-08-2020 9:31pm
    #1
    Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭


    I'm embarrassed to post this, but I think I damaged my cylinder head today on my W123.

    I pulled the plugs to check them, they all came out easily. Putting the first one back (no 1), I thought I got a few turns by hand, then put the socket on it. After a few turns (too many) I decided it did not feel right, too hard. I went ahead with the other 5 (M110 engine, ali head) to compare, they all went in as expected, very easy. I then removed no 2 and tried that plug in no 1, just in case it was the plug, no joy.

    My mate is a fitter, I rang him and he suggested a cleaning tap. We had a really bad phone connection so could not finish the conversation, will try again tomorrow. But in the meantime, what's your thoughts? I'm worried a tap will drop filings into the cylinder.

    I know about heli coils (sp?) but any suggestions without removing the head?

    Could I take a chance with a tap?

    Yours. kicking himself, in Dublin :)


Comments

  • Registered Users, Registered Users 2 Posts: 428 ✭✭Roger the cabin boy


    I'm embarrassed to post this, but I think I damaged my cylinder head today on my W123.

    I pulled the plugs to check them, they all came out easily. Putting the first one back (no 1), I thought I got a few turns by hand, then put the socket on it. After a few turns (too many) I decided it did not feel right, too hard. I went ahead with the other 5 (M110 engine, ali head) to compare, they all went in as expected, very easy. I then removed no 2 and tried that plug in no 1, just in case it was the plug, no joy.

    My mate is a fitter, I rang him and he suggested a cleaning tap. We had a really bad phone connection so could not finish the conversation, will try again tomorrow. But in the meantime, what's your thoughts? I'm worried a tap will drop filings into the cylinder.

    I know about heli coils (sp?) but any suggestions without removing the head?

    Could I take a chance with a tap?

    Yours. kicking himself, in Dublin :)

    I think your mate is right.

    Go give it to a car mechanic who has the right sockets and tools. There is a knack to finding the correct start of a thread that's damaged.


  • Moderators, Home & Garden Moderators Posts: 5,126 Mod ✭✭✭✭kadman


    Thread chaser for clearing the thread, but as I am not familiar with MB engines , you will have to wait
    for the MB experts to chime in.

    I know from working on VW engines, that we used thread clearing taps , and oversize taps on damaged
    plug threads. And often bored out 14mm damaged plug threads to 18mm.

    Back in the day it was place sash cord into the chamber,bring up the piston, and tap the thread.
    Any swarf acollected on the sash cord which was puled out with all the crap.

    This was before helicoils.

    But Like i said, best to get the advice from the merc men.

    good luck with it.


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    I think your mate is right.

    Go give it to a car mechanic who has the right sockets and tools. There is a knack to finding the correct start of a thread that's damaged.

    Thanks! I think I'd be able to trust my mate to do it, he looks after stuff in a plant hire company?


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    kadman wrote: »
    Thread chaser for clearing the thread, but as I am not familiar with MB engines , you will have to wait for the MB experts to chime in.

    Sounds like there might be hope to fix without removing the head?

    Does it matter what make the car is? I only mentioned the make as I was not 100% sure the head is alloy. I think it's safe to say you know your stuff!
    kadman wrote: »
    I know from working on VW engines, that we used thread clearing taps , and oversize taps on damaged plug threads. And often bored out 14mm damaged plug threads to 18mm.

    Wow, I hope I don't have to do that!
    kadman wrote: »
    Back in the day it was place sash cord into the chamber,bring up the piston, and tap the thread. Any swarf acollected on the sash cord which was puled out with all the crap.

    Is this a sash cord as used in house windows? So, if I understand, you push the sash into the cylinder and let it drop in there, then tap, then pull it out with a needle nose pilers?

    PS great work on the VW!


  • Moderators, Home & Garden Moderators Posts: 5,126 Mod ✭✭✭✭kadman


    Heads on the VW are cast aluminium alloy, so soft enough to thread easily.

    Soft enough for misaligned plugs to cross thread as well. Its common enough in the VW world
    as the plugs may not always be easily accessible being a flat 4.

    I am not Merc savvy, so I cant advise on the best course of action for you.

    But if it can be done with engine in place on a flat 4 vw engine, I reckon an upright engine
    is far easier.

    I remember back in the 60's my dad boring out a 14mm cross threaded hole, and re tapping
    an 18mm plug into the head on an old 1200 beetle. I thought nothing of it at the time,
    but looking back with the tools available then, it was a feat.

    Car drove for years after, I must ask him the full details of what he did then, and he could still do it now at 88:D


  • Advertisement
  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    Is your dad free this afternoon? :)

    Would you mind explaining the sash thing a bit further please?

    I've just been looking at some videos where people seemed to put in helicoils without concern about debris, including Scotty Kilmer if you know him. He just started the engine to blow it out. I won't be doing that. But in the comments, it was suggested to put grease on the tap and clean after every few turns. My mate said that too.

    https://www.youtube.com/watch?v=c_t2mz2tN3w


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington

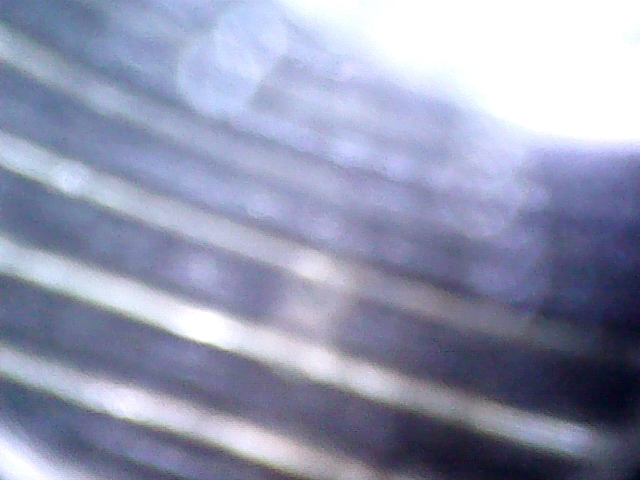

    I took some pics with a cheap endoscope, so not great quality.

    The first one is the bottom of the thread showing the good part, second is the damage:




  • Moderators, Home & Garden Moderators Posts: 5,126 Mod ✭✭✭✭kadman


    Is your dad free this afternoon? :)

    Would you mind explaining the sash thing a bit further please?

    I've just been looking at some videos where people seemed to put in helicoils without concern about debris, including Scotty Kilmer if you know him. He just started the engine to blow it out. I won't be doing that. But in the comments, it was suggested to put grease on the tap and clean after every few turns. My mate said that too.

    https://www.youtube.com/watch?v=c_t2mz2tN3w

    I just happened to post up pics of me placing case savers into magnesium alloy engine case.
    I also used plenty of grease on both the drills and the tap, and placed grease
    all near the hole.

    With a cross threaded plug hole.
    The sash cord was greased lightly and packed into the plug hole, with the piston near TDC. So that you did not need lengths of the cord. Then any tapping or drilling is done extremely gently and with care not to go beyond where you need to fix.

    I have worked on vw engines with helicoils that gave trouble with helicoils loosening. This was because the early helicoils were basically wound wire. And this type have rounded edges where they grip into the new thread, so there is always the possibility of moving.
    If you look at the case savers in my thread you will see how sharp the edges are, this gives a better bite into the new threaded hole.

    As I have already mentioned, I am not merc savvy so in your best interests you should contact one of the merc savvy guys here before you proceed with anything and I am sure they have come across this problem before.

    You wont be the first person to cross thread a plug:)


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    Hey, many thanks again.

    I just looked at your pics, interesting. I hope I will get by with a cleaning. It will be Tuesday till I can get a tap.

    Did you ever have problems getting the sash out?

    I might post this on the MB club forum, but I've been pestering them over the last few days with some other questions!
    kadman wrote: »
    You wont be the first person to cross thread a plug:)
    haha thanks :)


  • Moderators, Home & Garden Moderators Posts: 5,126 Mod ✭✭✭✭kadman


    Hey, many thanks again.

    I just looked at your pics, interesting. I hope I will get by with a cleaning. It will be Tuesday till I can get a tap.

    Did you ever have problems getting the sash out?

    I might post this on the MB club forum, but I've been pestering them over the last few days with some other questions!


    haha thanks :)

    Never had an issue, once you dont move the piston after you put in the cord.

    Dont worry about posting questions on the MB owners forum.

    Questions , questions, questions is what forums were made for, ask away...:D


  • Advertisement
  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    Thanks!

    OK I'll post there too, if they kick me out I'll say kadman made me do it :)


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    I got some replies on the MB club forum, mostly along what you already said (including your sash trick, but with a rag).

    Suggested this tool, which is cheap and local

    https://ige.ie/thread-chaser-set-2pc-for-spark-plugs/?gclid=EAIaIQobChMI0t7-94r96gIVSrDtCh0wFgzwEAQYASABEgL3ZvD_BwE

    And this which looks like the winner, I think as it may, I think, push the debris upwards

    https://www.sealey.co.uk/product/5637192178/reverse-action-spark-plug-thread-chaser-14mm

    I'll contact them tomorrow to see if I can get one here.


  • Moderators, Home & Garden Moderators Posts: 5,126 Mod ✭✭✭✭kadman


    Reverse action tool is an ingenious bit of kit.

    Let us know how that works for you,

    good luck with it.


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    Thanks kadman :)

    Vinny Byrnes have the Sealey tool so I will pick it up tomorrow (I'm off this week). That is great as they are 15 mins from me.

    Turns out the guy on the MB forum (mainly a UK club) that suggested it is from Galway!

    UPDATE they have to order it for me, will be Thurs/Fri


  • Registered Users, Registered Users 2 Posts: 5,446 ✭✭✭LollipopJimmy


    If it was me I'd remove the head. However I seem to love hardship


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    That's the exact thing I'm trying to avoid!


  • Moderators, Home & Garden Moderators Posts: 5,126 Mod ✭✭✭✭kadman


    That's the exact thing I'm trying to avoid!


    Any suggestions from MB forums??


  • Registered Users Posts: 166 ✭✭Exodus 1811


    Would a small magnet pick up any bits rogue in your cylinders, after the contingencies laid out in previous replies?


  • Registered Users Posts: 191 ✭✭welder


    Would a small magnet pick up any bits rogue in your cylinders, after the contingencies laid out in previous replies?

    Its an aluminium head, so any swarf generated won't be attracted to a magnet.


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    kadman wrote: »
    Any suggestions from MB forums??

    Hi, I think I posted that already? This site is acting up the last few days, there is a thread about in After Hours.

    Basically, much the same as you have said really. One guy suggested this tool:

    https://www.vinnybyrne.com/reverse-action-spark-plug-thread-chaser-14mm-html-9398.html

    I have it ordered and will be in Thur/Fri.

    ROCOL-53023 RTD Compound was also suggested for lube.

    Also : 'Following advice I took an old plug & filed ‘flats’ on two sides to effect a thread cleaning tap.' McGyver must be an MB owner!, but good at a pinch!


  • Advertisement
  • Registered Users Posts: 166 ✭✭Exodus 1811


    welder wrote: »
    Its an aluminium head, so any swarf generated won't be attracted to a magnet.

    Ah. Didn’t realise we established that.

    Although the swarf would be minimal if just cleaning the threads, I’d be wary!


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    Ah. Didn’t realise we established that.

    I was not 100% sure in the OP but looked it up in a book later.

    I'm sure if it was iron, it would be possible to magnetize the tool which should work well I'd guess


  • Moderators, Home & Garden Moderators Posts: 5,126 Mod ✭✭✭✭kadman


    You have 2 choices, tackle it your self, or get someone else to do it

    When you made up your mind on that, 2 more choices.

    Head on , or head off. Simples.

    Do you feel confident enough to do the work, including engine strip down. If you do go for it.

    If you dont, get a quote from a reputable guy. Which I suspect would be close to a four figure sum.

    But at this stage you want an expert if you dont do it yourself.


  • Moderators, Home & Garden Moderators Posts: 5,126 Mod ✭✭✭✭kadman


    If you are using a reverse thread chaser, you are minimising your risk of
    swarf into the chamber, and there wont be bucket loads of it anyway.

    Can you get access to any old scrap engines or heads to try your self first.??

    Were MB forum any help


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    kadman wrote: »
    If you are using a reverse thread chaser, you are minimising your risk of swarf into the chamber, and there wont be bucket loads of it anyway.

    Can you get access to any old scrap engines or heads to try your self first.??

    That's the hope!

    I don't have aaccess to any old heads unfortunately. I plan to try the tool on a good thread first just to get a feel for how it operates.

    kadman wrote: »
    Were MB forum any help

    Did you see my post #21?


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    kadman wrote: »
    You have 2 choices, tackle it your self, or get someone else to do it

    When you made up your mind on that, 2 more choices.

    Head on , or head off. Simples.

    Do you feel confident enough to do the work, including engine strip down. If you do go for it.

    If you dont, get a quote from a reputable guy. Which I suspect would be close to a four figure sum.

    But at this stage you want an expert if you dont do it yourself.

    Yes, about a grand was my gut feeling to have the head off, plus transport costs. So I'm going to try myself, with the head on. Although my timing chain is good, it would be madness not to change it if removing head so that's another cost.


  • Moderators, Home & Garden Moderators Posts: 5,126 Mod ✭✭✭✭kadman


    That's the hope!

    I don't have aaccess to any old heads unfortunately. I plan to try the tool on a good thread first just to get a feel for how it operates.




    Did you see my post #21?

    I can give you a vw magnesium alloy head if you want to try it on that.

    You can fek up one of the plugs first, then see if you can fix it.:)


  • Moderators, Home & Garden Moderators Posts: 5,126 Mod ✭✭✭✭kadman


    Sash cord was used because its firm enough that when you pull it out,
    it all comes out, and does not get caught. Unlike a fabric type of material,
    you may leave bits in there. I suppose lawnmower starter cord is much the same thing.

    Fingers crossed these smeared in grease should catch all the material.

    Youtube proper use of reverse chasers before you start.

    I am surprised that no other classic car owner has had to repair a damaged plug thread,
    because in the beetle world i have seen a few.


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    Hi, re the heads, not sure if you are joking, but if not where roughly are you?

    I looked around a few places for sash cord, no luck. I made up a circle of cotton and attached thread to 4 'corners' of it so it's like a parachute. This will enable me to pick it out, and, as I pull on the threads it folds up to trap any debris. I made a simulation head with a plastic bottle and it works ok.

    I'll post some pics aright. OK, I'll try a video too. You will have me on Tick Tok next lol


  • Advertisement
  • Moderators, Home & Garden Moderators Posts: 5,126 Mod ✭✭✭✭kadman


    I am deadly serious about the heads , I have a few scrap ones.

    I am next door to Kilbeggan racecourse.
    Parachute cord will do too, or lawnmower pull cord.

    Of course you wont be able to leave a pull cord in the plug obviously, no matter how light.

    Might work.

    Would you have to come far??


  • Moderators, Home & Garden Moderators Posts: 5,126 Mod ✭✭✭✭kadman


    [QUOTE=MrCostington; You will have me on Tick Tok next lol[/QUOTE]


    You went on the clock the minute you started this thread.


  • Registered Users, Registered Users 2 Posts: 5,446 ✭✭✭LollipopJimmy


    kadman wrote: »
    Sash cord was used because its firm enough that when you pull it out,
    it all comes out, and does not get caught. Unlike a fabric type of material,
    you may leave bits in there. I suppose lawnmower starter cord is much the same thing.

    Fingers crossed these smeared in grease should catch all the material.

    Youtube proper use of reverse chasers before you start.

    I am surprised that no other classic car owner has had to repair a damaged plug thread,
    because in the beetle world i have seen a few.
    I did but I pulled the head, got a replacement from a scrappy and gave it fresh valve guides and valve stem oil seals. I was under the 500 quid including the machine shop work.

    I dont like the idea of repairing in situ but I am also a glutton for punishment


  • Moderators, Home & Garden Moderators Posts: 5,126 Mod ✭✭✭✭kadman


    I did but I pulled the head, got a replacement from a scrappy and gave it fresh valve guides and valve stem oil seals. I was under the 500 quid including the machine shop work.

    I dont like the idea of repairing in situ but I am also a glutton for punishment

    So you replaced the head, but you didn't repair the damaged one.

    Thats an option for the op.:)


  • Registered Users Posts: 166 ✭✭Exodus 1811


    Following this with great interest.

    The below could be completely ridiculous, but anyways...

    Would it be an idea to fill the chamber with petrol so that any light swarf will be suspended, then post cleaning of the threads, suck it out?


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    kadman wrote: »
    I am deadly serious about the heads , I have a few scrap ones.

    I am next door to Kilbeggan racecourse.
    Parachute cord will do too, or lawnmower pull cord.

    Of course you wont be able to leave a pull cord in the plug obviously, no matter how light.

    Might work.

    Would you have to come far??

    Many thanks, I really appreciate that, but I'm in Dublin so it would be about 3 hr round trip. I'll try without, thanks.

    I think you misunderstand my use of the word parachute, I made this:


    Re tic tok, that was a joke. I'm not one for social media so I don't post on YT. tic toc is a video sharing app the young people use lol. I have booked hair and makeup for my YT début !


  • Advertisement
  • Registered Users, Registered Users 2 Posts: 5,446 ✭✭✭LollipopJimmy


    kadman wrote: »
    So you replaced the head, but you didn't repair the damaged one.

    Thats an option for the op.:)

    Sorry, the car was still running, just the plug was working its way out due to worn threads, I rebuilt the replacement which meant the car was only down for a couple of days when swapping over. Worked for my situation at the time - dailying a classic!


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    kadman wrote: »
    So you replaced the head, but you didn't repair the damaged one.

    Thats an option for the op.:)

    The cost would be the hours involved. I'd have to get a pro to to it. I've been looking at your videos with envy (your workshop, and skill of course), I'm doing this on the roadside.


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    Would it be an idea to fill the chamber with petrol so that any light swarf will be suspended, then post cleaning of the threads, suck it out?

    Petrol is even less dense than water, anything would just sink. And it would get into the crankcase I'd think. But I like your thinking!!


  • Registered Users, Registered Users 2 Posts: 5,446 ✭✭✭LollipopJimmy


    The cost would be the hours involved. I'd have to get a pro to to it. I've been looking at your videos with envy (your workshop, and skill of course), I'm doing this on the roadside.

    Paying for it to be done would be a whopper bill alright.


  • Registered Users, Registered Users 2 Posts: 5,446 ✭✭✭LollipopJimmy


    Lads, I've cracked it

    https://youtu.be/ccf83w0EvK4


  • Advertisement
  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    Lads, I've cracked it

    https://youtu.be/ccf83w0EvK4

    LOL but I'm way ahead of you. I call it Johnny



  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    kadman wrote: »
    Youtube proper use of reverse chasers before you start.

    Here you go, just got it today, not tried it yet.



    This is the MS003 Sealey reverse action spark plug chaser for repairing crossed spark plug threads in your cylinder head. This is for a 14mm plug with 1.25mm thread pitch. I confirmed this by emailing Sealey directly, they were very helpful. I guess they do other sizes. And I checked this is what I needed by looking up the spec for the plug.

    Only Irish stockists is VinnyByrne.com and it's about €34

    Make sure piston is not at TDC to allow room for it.


  • Moderators, Home & Garden Moderators Posts: 5,126 Mod ✭✭✭✭kadman


    Here you go, just got it today, not tried it yet.



    This is the MS003 Sealey reverse action spark plug chaser for repairing crossed spark plug threads in your cylinder head. This is for a 14mm plug with 1.25mm thread pitch. I confirmed this by emailing Sealey directly, they were very helpful. I guess they do other sizes. And I checked this is what I needed by looking up the spec for the plug.

    Only Irish stockists is VinnyByrne.com and it's about €34

    Make sure piston is not at TDC to allow room for it.

    Thats a nice bit of kit. I hope I never need one:D

    I assume the recommendation is to put a small bit of grease on it to catch the swarf, and clean it on each chase out of the plug hole. No point in reversing it up the plug hole, cutting swarf, and then winding the swarf back into the plug hole.

    Looks good, good luck on your endeavors:).


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    Job done! It was a nerve-racking job to make sure I did it right and not make it worse. I need a drink and lie down after it!!

    I did not use the rag in the end, it looked to be a very tight fit, so I decided against it, would use my vacuum after.

    I applied some grease to the end of the tool before inserting, There is actually very little clearance to get it in. At first, could not get what seemed like the right thread. I thought I was going to end up damaging the bottom of the thread too. So I took it very easy and gently to find the natural thread. After a few tries it became smooth as expected. I assume I just had to overcome some carbon deposits at the start.

    Once I got a few turns in I dropped some 3 in 1 oil into the thread (forgot to get cutting oil) and very gently unscrewed the tool. When I found it getting too hard, I reversed my ratchet and went in a turn, before resuming the cutting/cleaning.

    Once done, cleaning the tool revealed a fair amount of metal in with the grease. I cleaned the tool and the head and inspected the thread with my endoscope camera and saw some metal residue. I used the tool a second time, mostly able to just use fingers to unscrew, and inspected the thread again, much better.

    I then inspected the top of the piston and cylinder wall, all clean so I put the plug in and started it up.

    Thanks everyone (especially kadman) for all your help.


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    kadman wrote: »
    I assume the recommendation is to put a small bit of grease on it to catch the swarf, and clean it on each chase out of the plug hole. No point in reversing it up the plug hole, cutting swarf, and then winding the swarf back into the plug hole.

    That's exactly what I did. It's a one direction operation. Although I used it a second time, that was just to catch some swarf, no cutting was done.


  • Moderators, Home & Garden Moderators Posts: 5,126 Mod ✭✭✭✭kadman


    Thats a great result, I knew you could do it.

    Well done.:cool::cool:


  • Registered Users, Registered Users 2 Posts: 1,281 ✭✭✭MrCostington


    Thanks! You have more faith in me than I do! Anyway, a lesson learned!

    I left you a little thank you in the today I saw a classic thread :)


Advertisement
