Replacing integrated LED

  • 09-12-2025 02:06PM
    #1
    sugarman20
    Registered Users, Registered Users 2, Paid Member Posts: 361 ✭✭


    Hi all

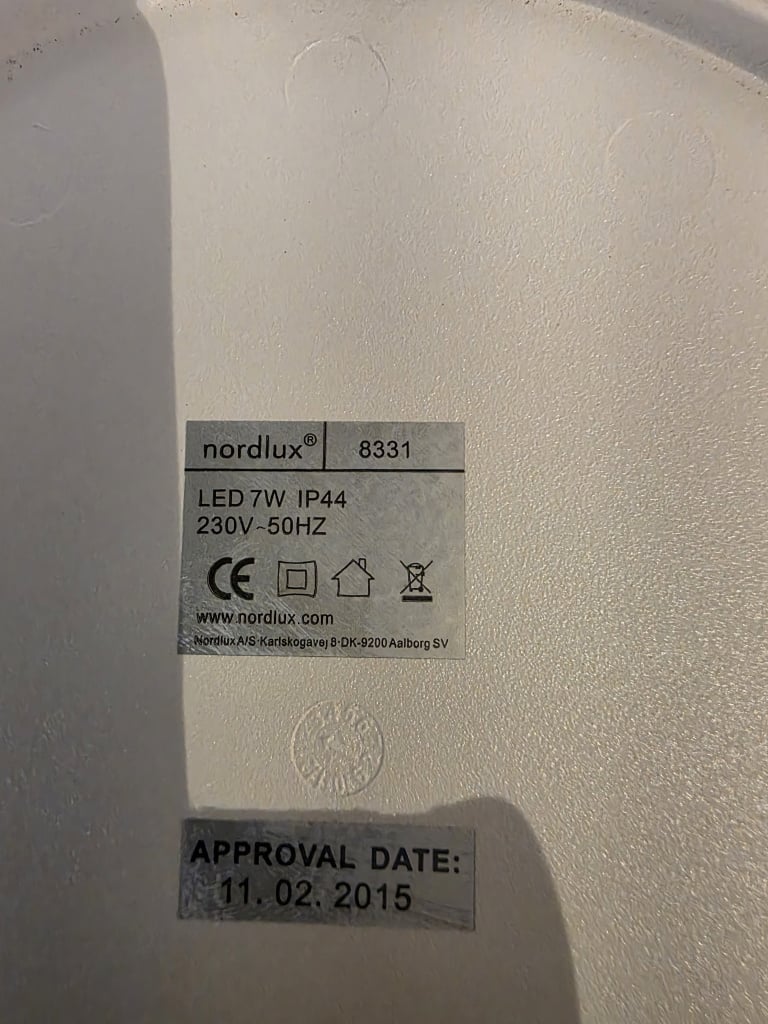

    We have this integrated LED light in the bathroom from Nordlux. CS have said it can't be replaced and they don't make this type of light anymore. Is there anything we can do to get it working again?

    28491.jpg 28490.jpg

    SUBSCRIBE HERE TO KEEP BOARDS ONLINE

    Linky



Comments

  • #2
    10-10-20
    Registered Users, Registered Users 2, Paid Member Posts: 9,845 ✭✭✭10-10-20


    What type of capsule or layout are the LED's, can you show us?



  • #3
    sugarman20
    Registered Users, Registered Users 2, Paid Member Posts: 361 ✭✭sugarman20


    How do I show the LED's? Do I need to unscrew the 3 larger Phillips screws?

    SUBSCRIBE HERE TO KEEP BOARDS ONLINE

    Linky



  • #4
    10-10-20
    Registered Users, Registered Users 2, Paid Member Posts: 9,845 ✭✭✭10-10-20

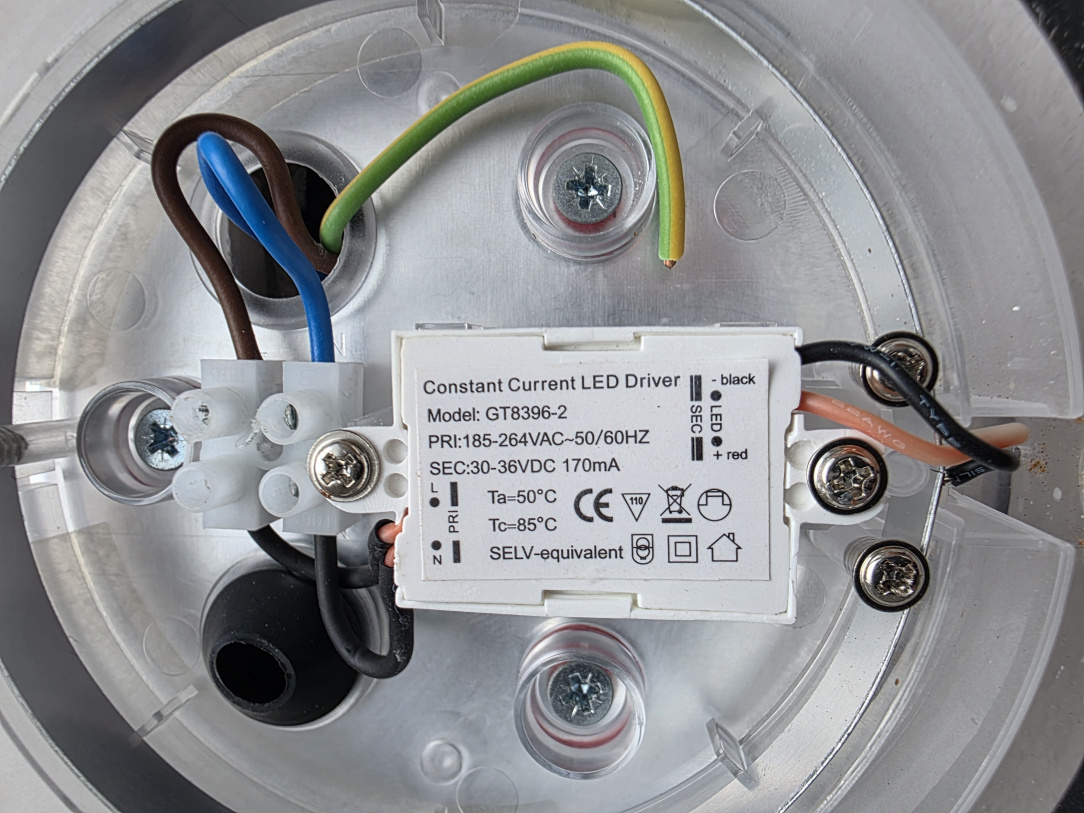

    I'm not actually sure of the construction, but the other thing is that there's a chance that the LED driver (the white box) is gone… so it might all be a waste of time to look at the LED's unless you can test the driver in the first place… 🙄



  • #5
    autumnalcore
    Registered Users, Registered Users 2 Posts: 907 ✭✭✭autumnalcore


    If you have a multimeter there should be dc voltage on the secondary side (right side of the image) be careful though as theres is also 240v in there. In no voltage, you're unlikely to find one that 170ma or exactly the same layout but an adjustable one like this set to 150mA or 180mA should work if theres room to shoe horn it in there. https://www.aliexpress.com/item/1005010175808902.html
