Replacement for old style central heating timer

pihjin

Hello folks,

I have an oil boiler and am older clock-style heating timer in my house. This one:

I'm looking to swap it out as the timer on it no longer rotates and ideally I'd like something I can programme to go on and off a couple of times a day and then have the option to also boost an extra hour.

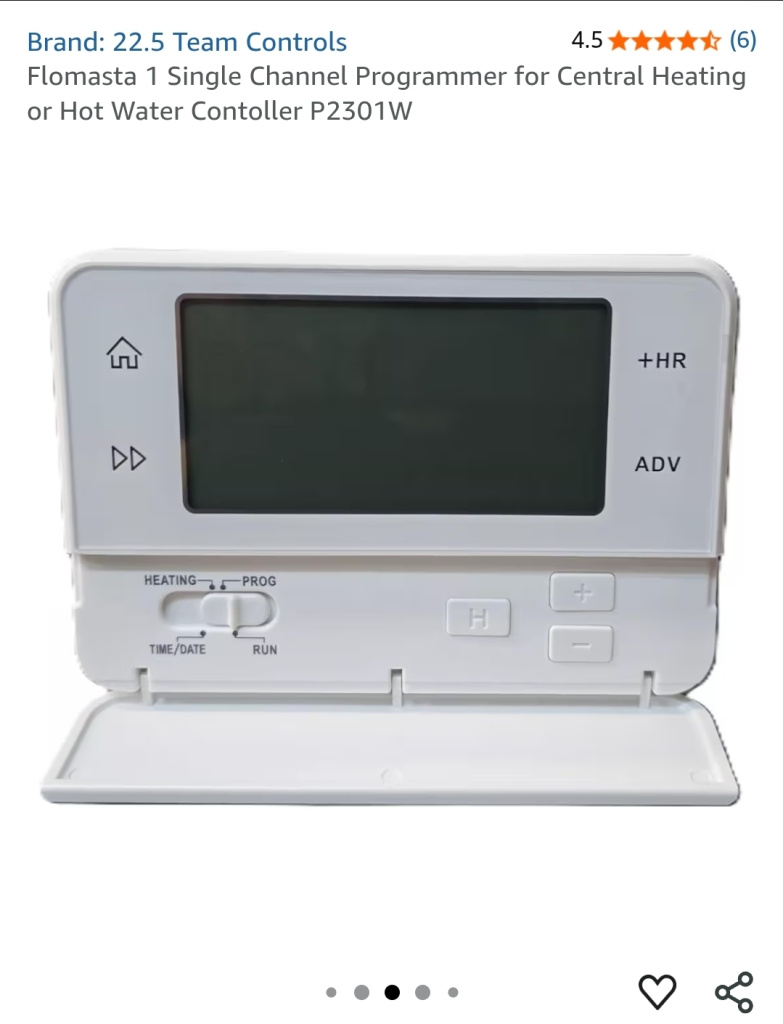

I was wondering if someone could tell me if this would be a suitable replacement? I don't need it to control my hot water separately, or connect to wifi etc. I'm on DA so just need a cheap and simple replacement.

Thanks so much.

Wearb

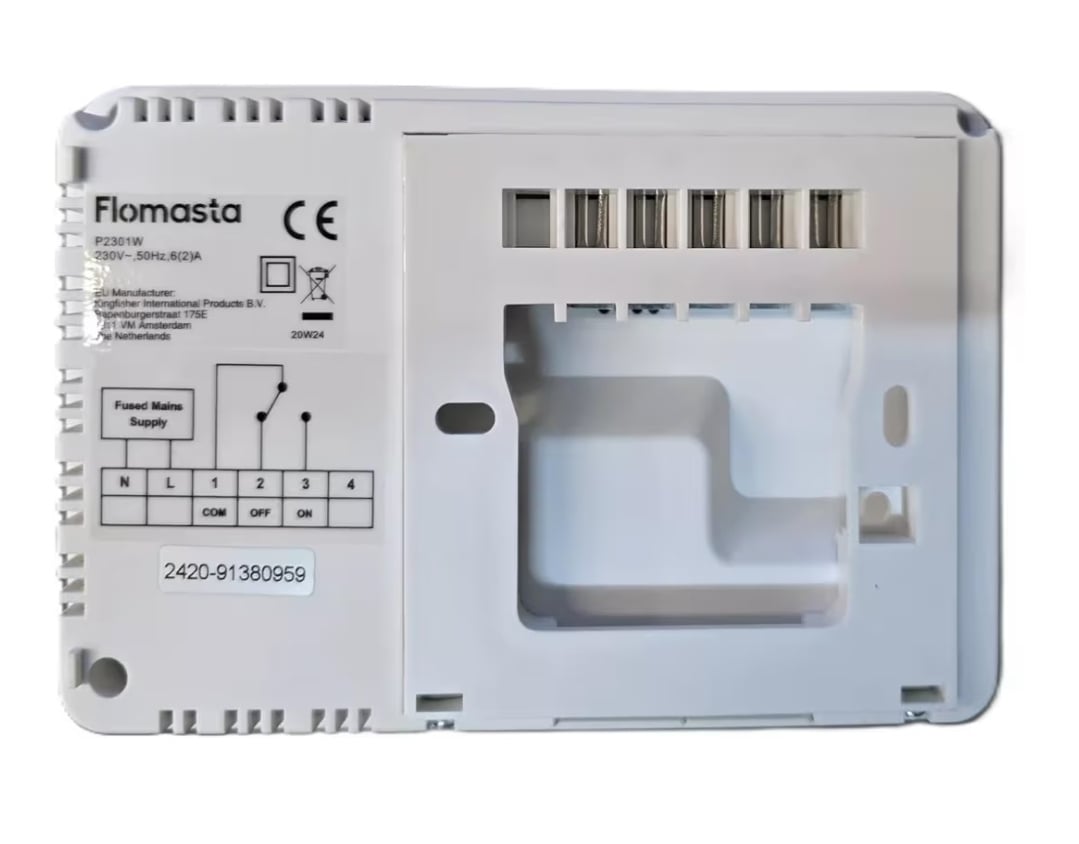

It's difficult to read the print, but I think it reads 2a. Not enough without a relay.

There are cheap WiFi sockets and switches that timers can be set using an app on your phone.

10-10-20

This is a fine controller, available in most electrical wholesalers, etc.

https://www.ephcontrols.com/section/r17-v2/

https://www.eurosales.ie/heating-programmers/c-5274.html

blinking

What's the go to "smart" replacement for one of those timer clocks? The time I have runs off 230V AC and the Nest Thermostats aren't compatible as they require 12V DC if I'm not mistaken b

pihjin

Thank you. That Eurosales one looks ideal 👍🏻

pihjin

How does that physically replace the old timer? Does some part of the wifi setup get wired into where that was?

Wearb

https://www.boards.ie/discussion/comment/123911291#Comment_123911291

None of those would replace what he already has. The ratings are too low.

10-10-20

https://www.boards.ie/discussion/comment/123911377#Comment_123911377

Pardon my ignorance but what rating is an oil boiler then?

Wearb

They recommend a 5a fuse. It will have a higher starting current than run current. Would probably get away with 3a but not what they recommend, and could lead to periodical faults.

The existing timer is rated for at least 13a.

pihjin

Thank you for this. It's not something I've any knowledge on.

Would something like this be better?

https://dwyers.ie/products/eph-1-channel-programmer?srsltid=AfmBOorIdDArsDSoRHTo0ZZcOrQshLUT3S02qJRyXeldXdQ8jkXhzAZ6

I can't seem to see where the fuse rating is mentioned.

pihjin

Hi there, whereabouts can I find the rating of the timers written ? Thanks

Lenar3556

You might need to google, and get the datasheet on any one you are considering.

Many will have dual current ratings shown, one for resistive loads and a (smaller) rating for inductive loads, of which oil heating loads will be.

A typical oil burner is about 160W, and an old style circulating pump could be another 100W. Zone valves are about 5W each. So a typical domestic heating system doesn’t tend to exceed about 275W or 1.2A (inductive)

Having said that if you have extra pumps, system links, solid fuel boilers etc, you may need more. The circuit should also have suitable overall protection, such as 3A fuse.
