Site lines on a planning drawing

  • 09-10-2025 06:58PM
    #1
    Calahonda52
    Registered Users, Registered Users 2 Posts: 12,967 ✭✭✭✭


    Request has come back for sight lines onto a 80 km/h road; 160m each way

    Scale need to be 1:500 so what size paper do I need for that? Looks like A1 portrait

    Do I need to accurately portray the road for the full 320m. its a pretty busy road so could be dangerous standing with a staff on the white line!

    Could I buy a custom OSI map for the section?

    “I can’t pay my staff or mortgage with instagram likes”.



Comments

  • #2
    Mellor
    Registered Users, Registered Users 2 Posts: 40,753 ✭✭✭✭Mellor


    will fit easily on A1. Might squeeze it on to A2 diagonally.
    but why bother, a1 is a more common size and scales better.



  • #3
    Calahonda52
    Registered Users, Registered Users 2 Posts: 12,967 ✭✭✭✭Calahonda52

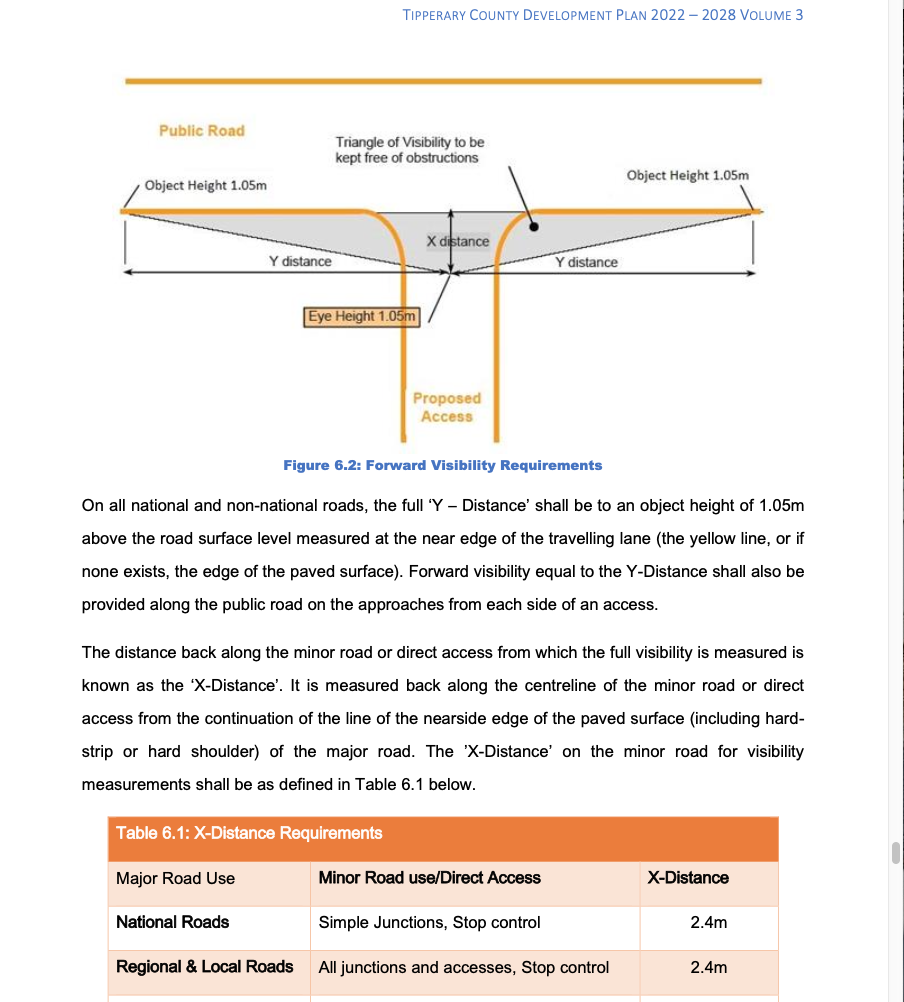

    Thanks Mellor, Just wondering why the LOS on the left is the to the near side yellow line as traffic is moving away?

    Screenshot 2025-10-11 at 07.33.20.png

    “I can’t pay my staff or mortgage with instagram likes”.



  • #4
    Jakey Rolling
    Registered Users, Registered Users 2 Posts: 1,036 ✭✭✭Jakey Rolling


    https://www.boards.ie/discussion/comment/123896398#Comment_123896398

    You have to account for some eejit overtaking coming from the left…
