Oven install

  • 01-12-2024 10:08PM
    #1
    Registered Users, Registered Users 2 Posts: 16,390 ✭✭✭✭


    I am swapping out our old oven and putting a new one in.

    They are wired slightly differently. Old one had no cables and the electrical wire went straight into the back of it.


    the new one has a cable.


    I assume I need to get some sort of junction box to hook it up. Any suggestions?

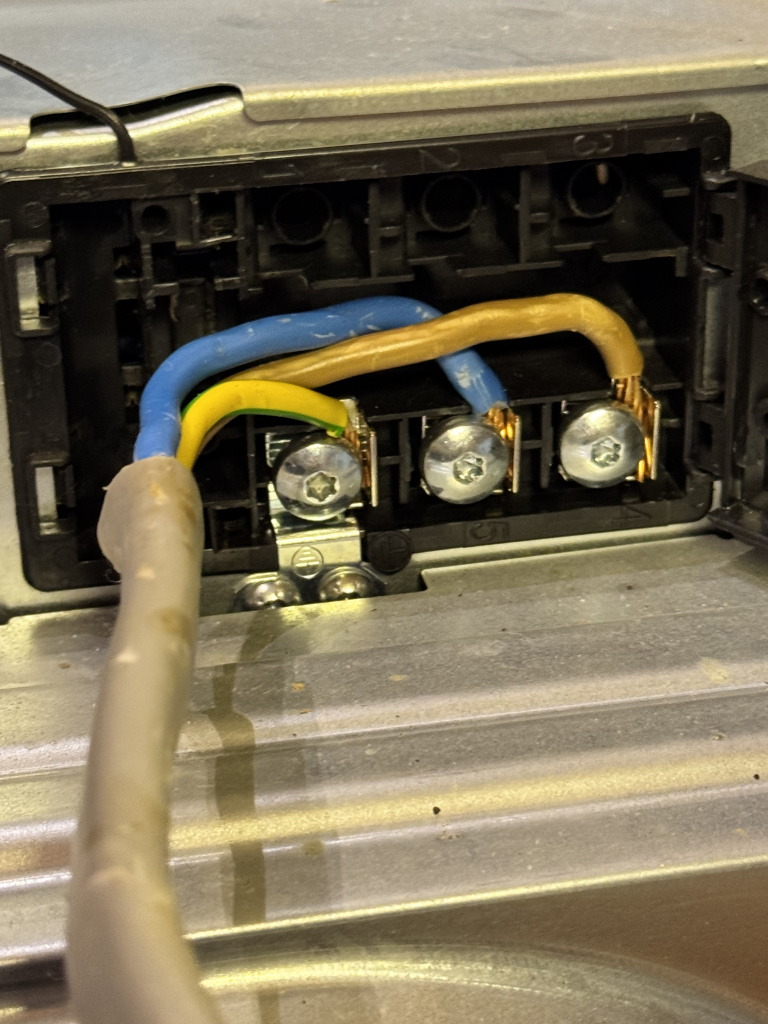

    Old one

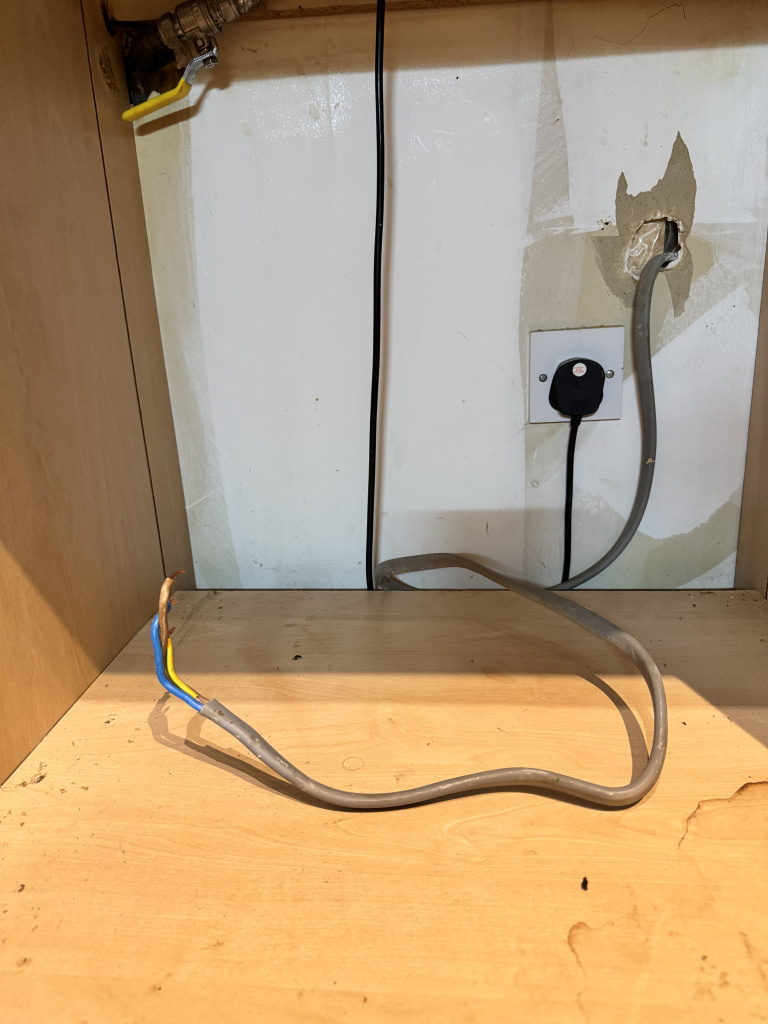

    Cable

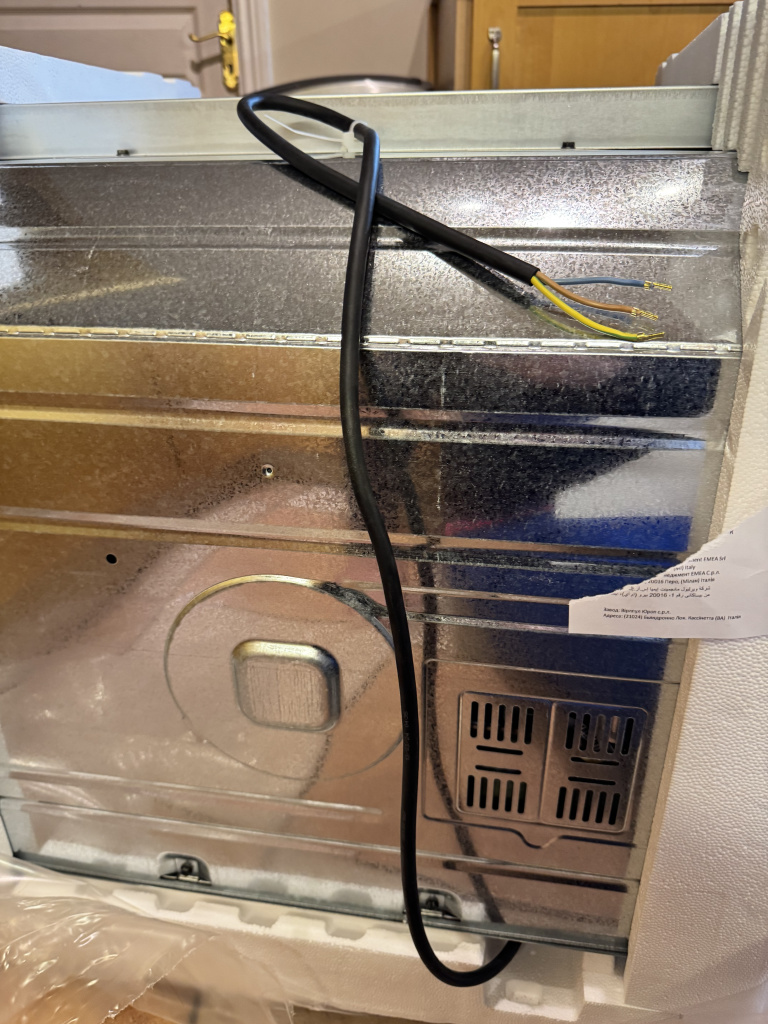

    new oven



Comments

  • Registered Users, Registered Users 2 Posts: 1,208 ✭✭✭rob w


    You'll want to fit a cooker connection unit like that. But put in a spur with a 13a fuse too, the cable size on the new oven looks only 2.5mm sq

    What is the rating of the new oven in kw?

    Post edited by rob w on


  • Registered Users, Registered Users 2 Posts: 1,208 ✭✭✭rob w


    https://www.screwfix.ie/p/mk-logic-plus-45a-unswitched-cooker-outlet-plate-white/16686?tc=BI4&gad_source=1&gclid=Cj0KCQiAr7C6BhDRARIsAOUKifgobZWECcEc_kS9Qa04Rr1nQhYLzdr0OUvZrkPapwhegbmiypaoyxAaAqXtEALw_wcB&gclsrc=aw.ds



  • Registered Users, Registered Users 2 Posts: 2,119 ✭✭✭Lenar3556


    Yes you will be joining the two in a junction box, but check the oven manual and see if it requires a fused connection unit. Many ovens are designed to be connected to a 13A supply - not 32A which is likely the protection on that existing cable.
