Pyronix DELTABELL X LightBox

kajo

Hi Guys,

I am looking to change the bellbox on a HKC SW-1070 to a Pyronix DELTABELL X LightBox.
I have done this before on my old Horizon alarm with the help of Koolkid now my daughter is asking me to put one on her house.

So I am looking inside the HKC SW-1070 panel and need to know what wires go to the connections on DELTABELL bell box.

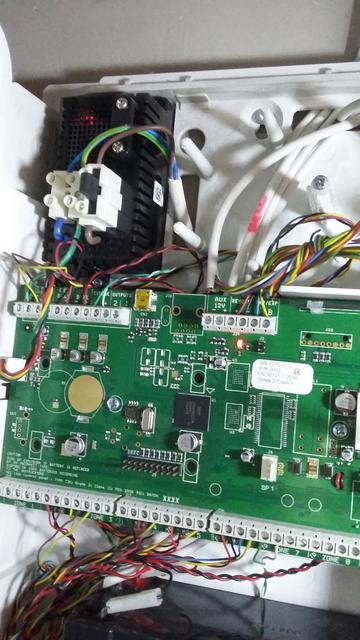

Inside the HKC SW-1070 panel : https://i.postimg.cc/50P7TSzF/20190923-142833.jpg

I need to wire it into this new DELTABELL bell box: https://i.postimg.cc/zfz4QBQ6/20180430-150315.jpg


I would very much appreciate any help you guys can give me on a side note I don't think I have engineers code unless the installer left it on the default.

At some stage I would like to add a fob but that is for another day.

Regards,

Kajo

davidconroy46

Hi was it a delta you put onto the horizon panel?

kajo

Connected a Pyronix DELTABELL X LightBox to my horizon and it worked great with the help of Koolkid.

kajo

Anybody have a diagram to switch these bellbox?

Thanks

KoolKid

Which bell do you want to connect to which panel?

kajo

Pyronix DELTABELL X LightBox, Anti-Tamper, Wall Mounted, Flashing LED, Strobe, with PCB Module.

https://postlmg.cc/3yxzz6Dy

Into HKC 1070 panel https://postimg.cc/k6bvt8fn
