Replacing immersion heater switch

  • 13-12-2018 3:16pm
    #1
    kajo
    Registered Users, Registered Users 2 Posts: 109 ✭✭


    Replacing old immersion heater switch with new.
    Would be glad of a little help re the wiring thanks.

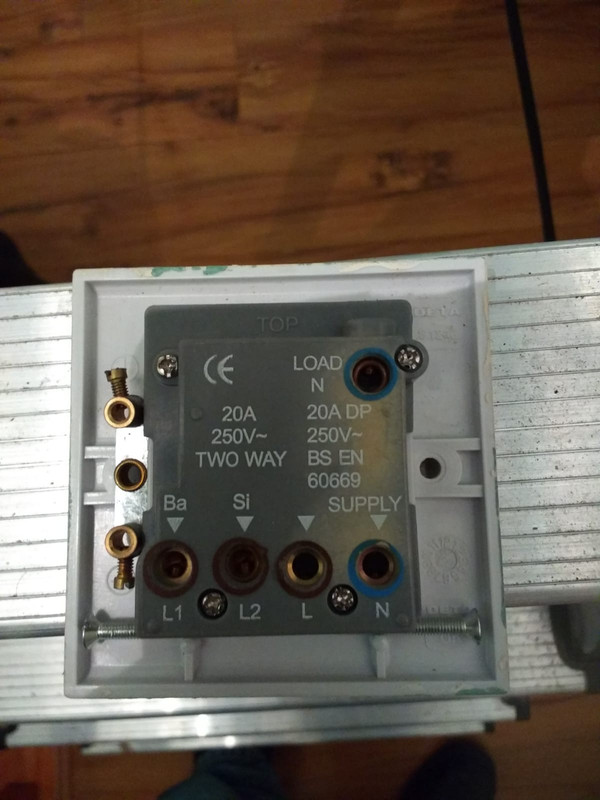

    OLD SWITCH



    NEW SWITCH



    CANY ANYBODY CONFIRM MARKED WIRE MOVE WOULD BE THE CORRECT WIRING?



Comments

  • #2
    Adam__78
    Registered Users, Registered Users 2 Posts: 10 ✭Adam__78


    I just connected this new switch identical to your one. The L (OUT) need to be linked with 20/250, rest wires as per description.
