Diy chainsaw bench logger

  • 06-05-2018 08:19AM
    #1
    Registered Users, Registered Users 2 Posts: 509 ✭✭✭

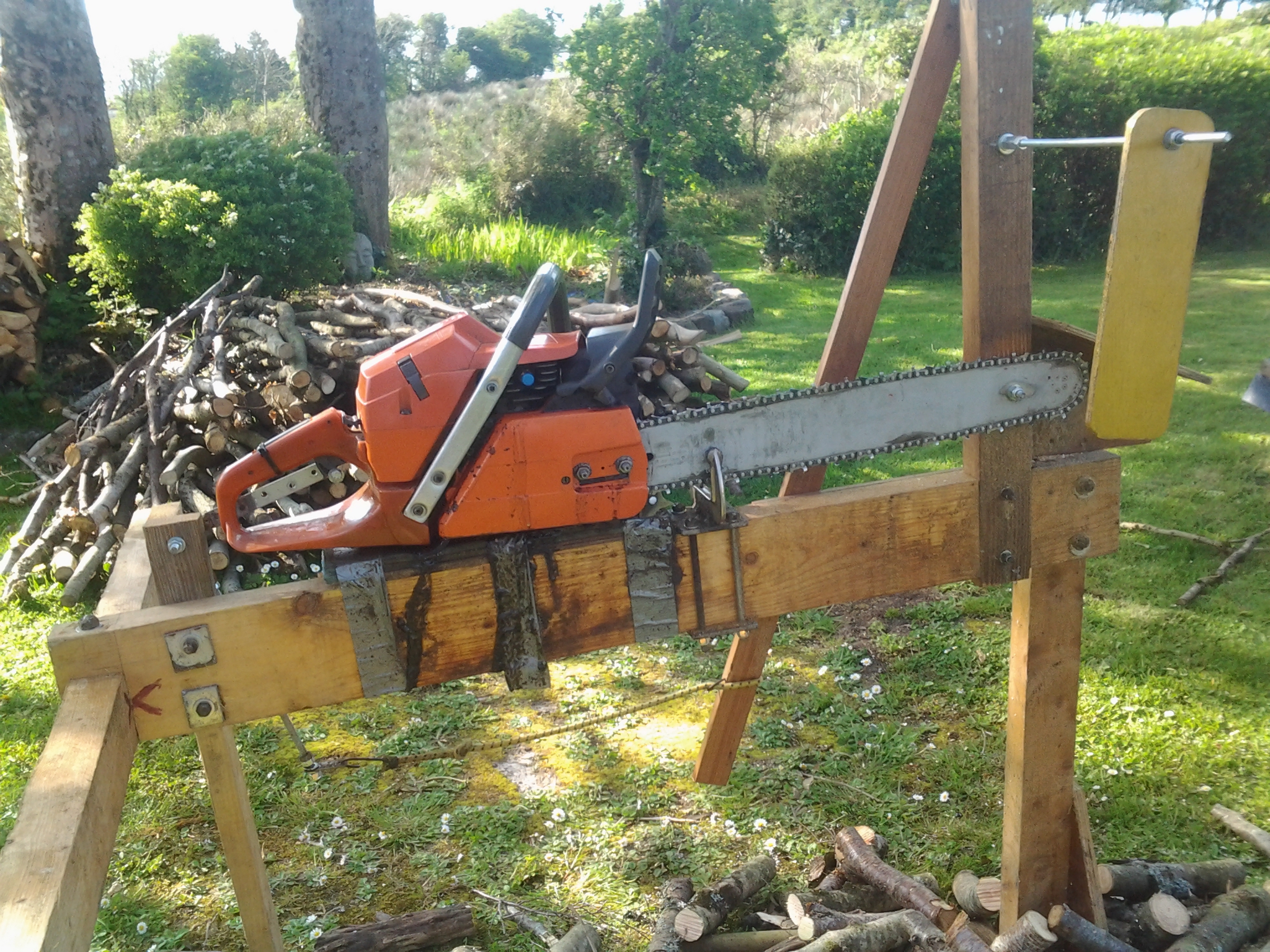

    When processing fallen trees for firewood I throw any straightish 2 or 3 inch down stuff to one side and chop up later on when i've amassed a bit of a pile. I thought about getting one of those small electric tilting bench saws, but they look a bit slow to use and maybe better suited for slightly larger logs. After looking at several days worth of youtube videos of diy solutions to small diameter logging, I built one out of scrap timber, an old g-clamp, a bungee and a tenners worth of nuts and bolts. Seems to work brilliantly on slightly bent guide bar + chain on last sharpening. It has crossed my mind that I could use a cheap chinese saw with dangerous handle/chainbrake issues, because the logger doesn't employ those features.





Comments

  • Registered Users, Registered Users 2 Posts: 765 ✭✭✭Agent_47


    Wouldn't be my cup of tea. I use the metal ends of 2 chairs. one placed with the legs as normal and the other on top of it upended and duct taped together.

    It acts like a 4 finger grab, i put all small short diameter lengths into and then fire up the saw


  • Registered Users, Registered Users 2 Posts: 88 ✭✭southkilkenny


    Hi agent47,

    ANY pics of your set up would be greatly appreciated. Thanks
